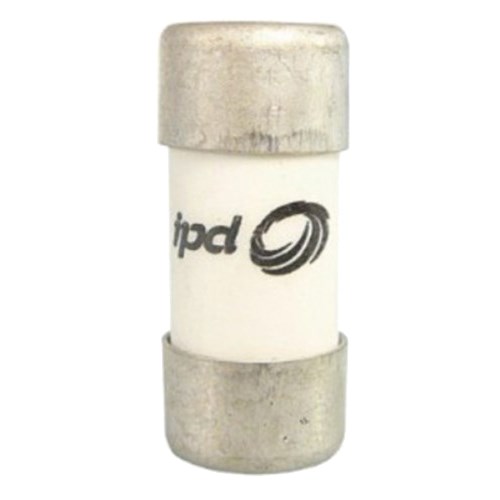

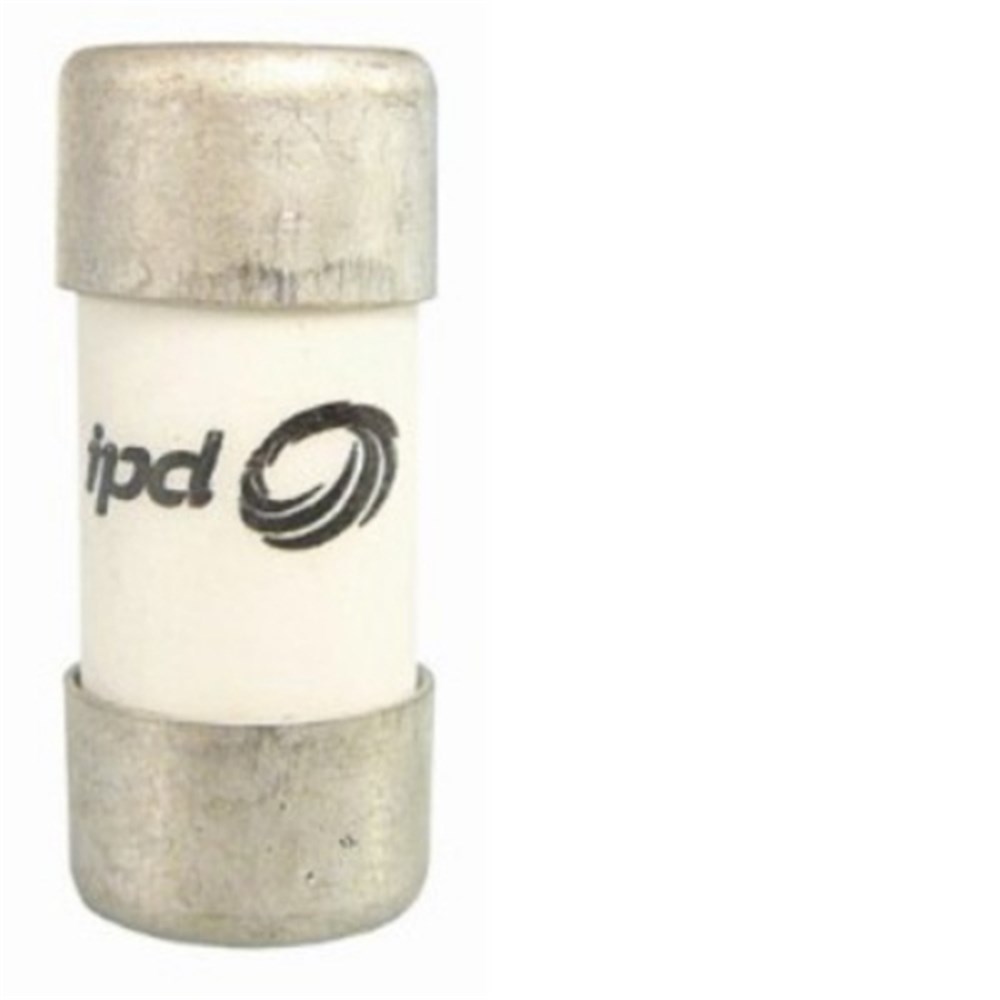

IPD SK10 Unit Fuse-Link 10A 440VAC Ferrule Fuse Cylindrical 29mm L x 12.7mm D 20kA gG

Product Code: SK10

  • Rated for 10 A current
  • Complies with AS60269 standards
  • Handles voltage up to 440 VAC
  • Breaking capacity of 20 kA
  • Compact cylindrical design
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Application
Consumer fuse protection

Electrical

Rated Current (In)
10 A
Rated Voltage (Ur)
415 V

Mechanical

Body Style
Cylindrical
Indicators
Without indicator
Material
Body: Ceramic; Contact: Silver plated copper
Size Code
29 x 12.7
Connection/Termination
Ferrule end caps

Dimensions & Physical Data

Length
29 mm
Width
Ø 12.7 mm

Safety, Standards & Compliance

Standards and Approvals
AS 60269

Documents

IPD Product Catalogue V17
