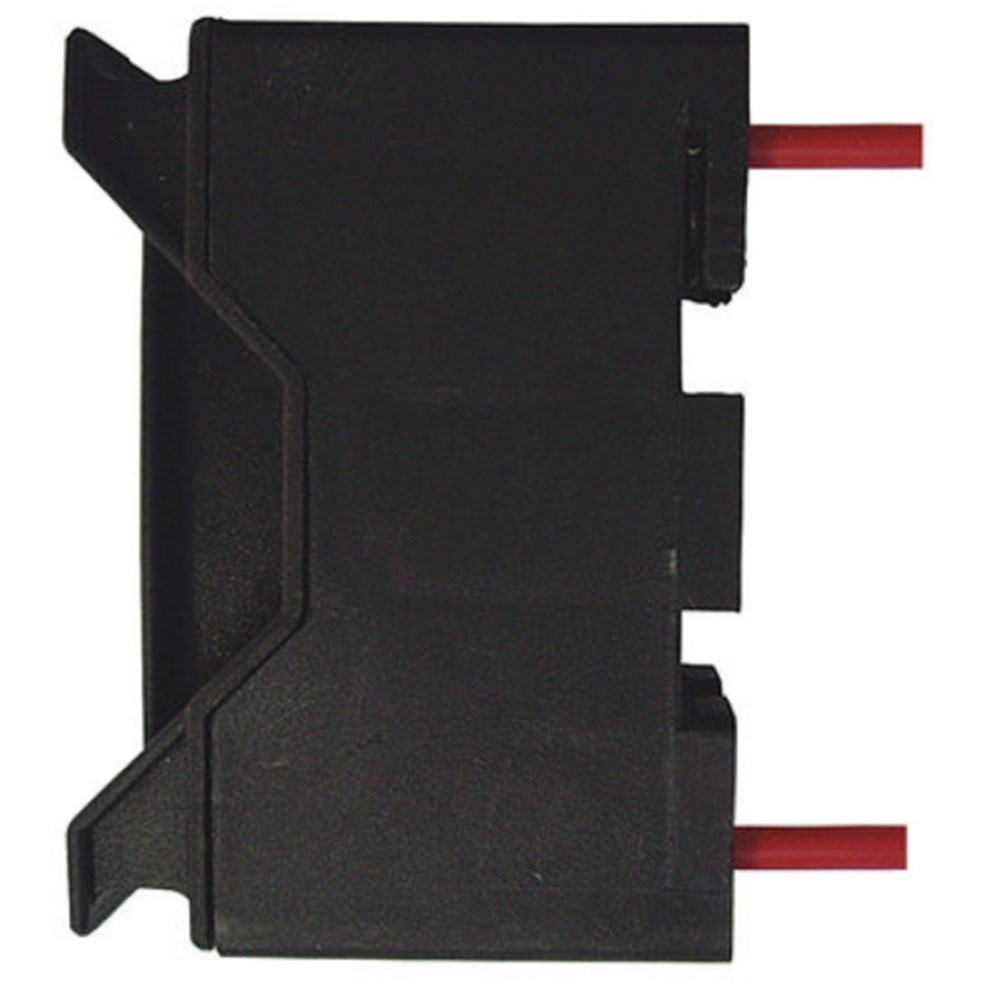

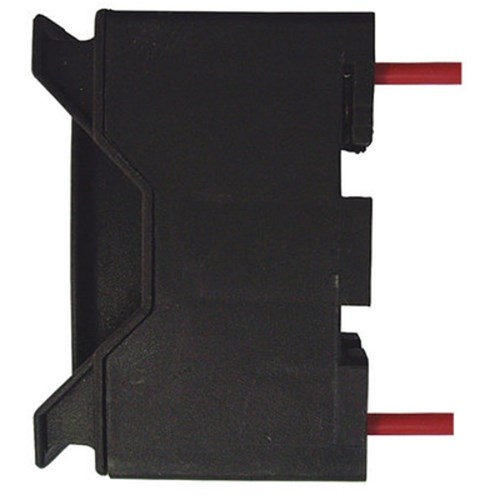

IPD SC32BW Fuse Fitting 32A 415VAC Black Back Wired IP20 For: NS

Product Code: SC32BW

  • Rated for 32 A and 415 VAC
  • Back wired connection
  • IP20 protection rating
  • DIN rail mounting
  • 80 kA breaking capacity
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Fitting
Brand
IPD
Application
For medium load circuits to protect from overcurrent and short circuits

Electrical

Rated Voltage (Ur)
550V AC
To Suit HRC Fuse Link
NS

Mechanical

Colour
Black
Max. Cable Entry (mm)
16mm
Connection/Termination
Back Wired

Dimensions & Physical Data

Height
26.5
Length
54
Width
75.5

Safety, Standards & Compliance

Standards and Approvals
BS88-1 & 6, AS60269, IEC 269-2-1

Documents

IPD Product Catalogue V17
