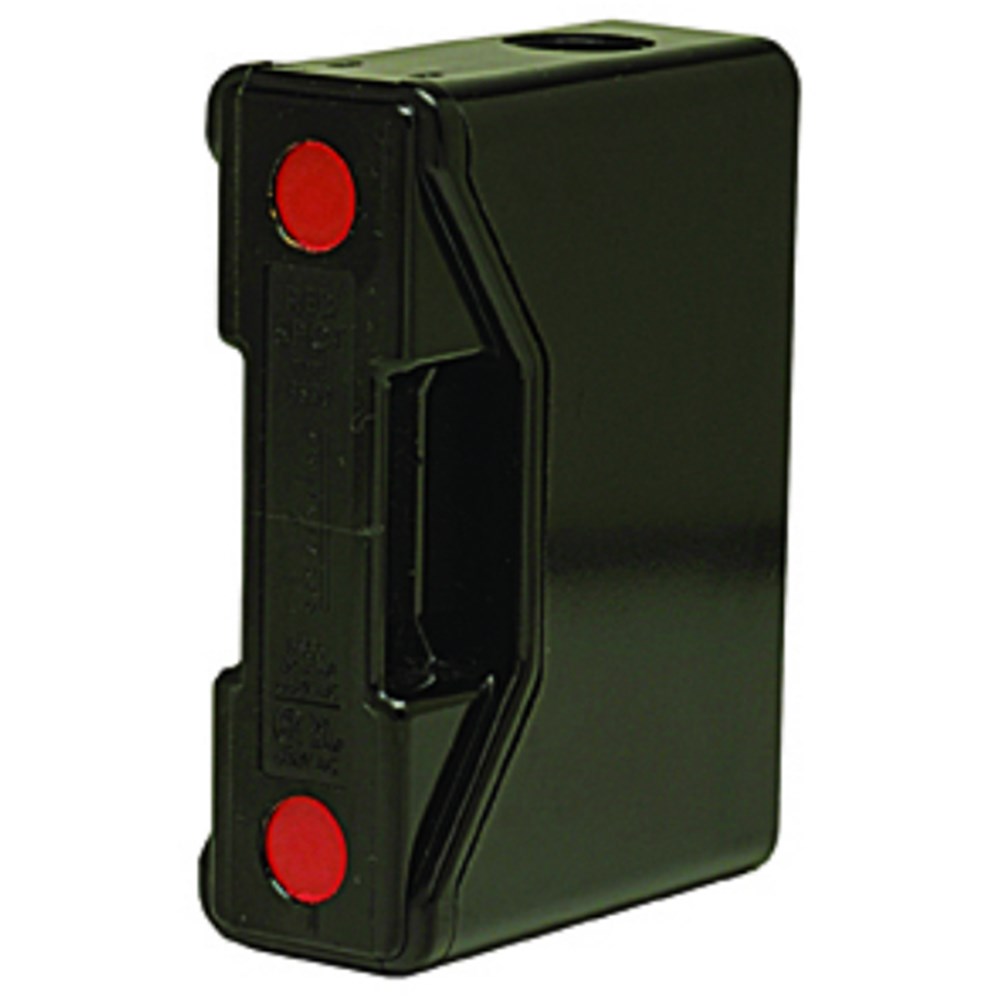

IPD RS32H Fuse Fitting 32A 690VAC Black Front IP20 For: TIA

Product Code: RS32H

  • Rated for 32A, 690VAC applications
  • Compact size: 32mm W x 103mm H x 70mm D
  • Front connection with screw mounting
  • IP20 protection against solid objects
  • Complies with BS, AS, and IEC standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Fitting
Brand
IPD
Series
RS
Application
To mount fuse links and provide protection for low-voltage circuits

Electrical

Rated Current (In)
32A
Rated Voltage (Ur)
690V AC
To Suit HRC Fuse Link
TIA

Mechanical

Colour
Black
Fixing Centres
73
Max. Cable Entry (mm)
25mm
Connection/Termination
Front connected

Dimensions & Physical Data

Height
103
Length
70
Width
32

Safety, Standards & Compliance

Standards and Approvals
BS 88-2, AS 60269, IEC 269-2-1

Documents

IPD Product Catalogue V17
