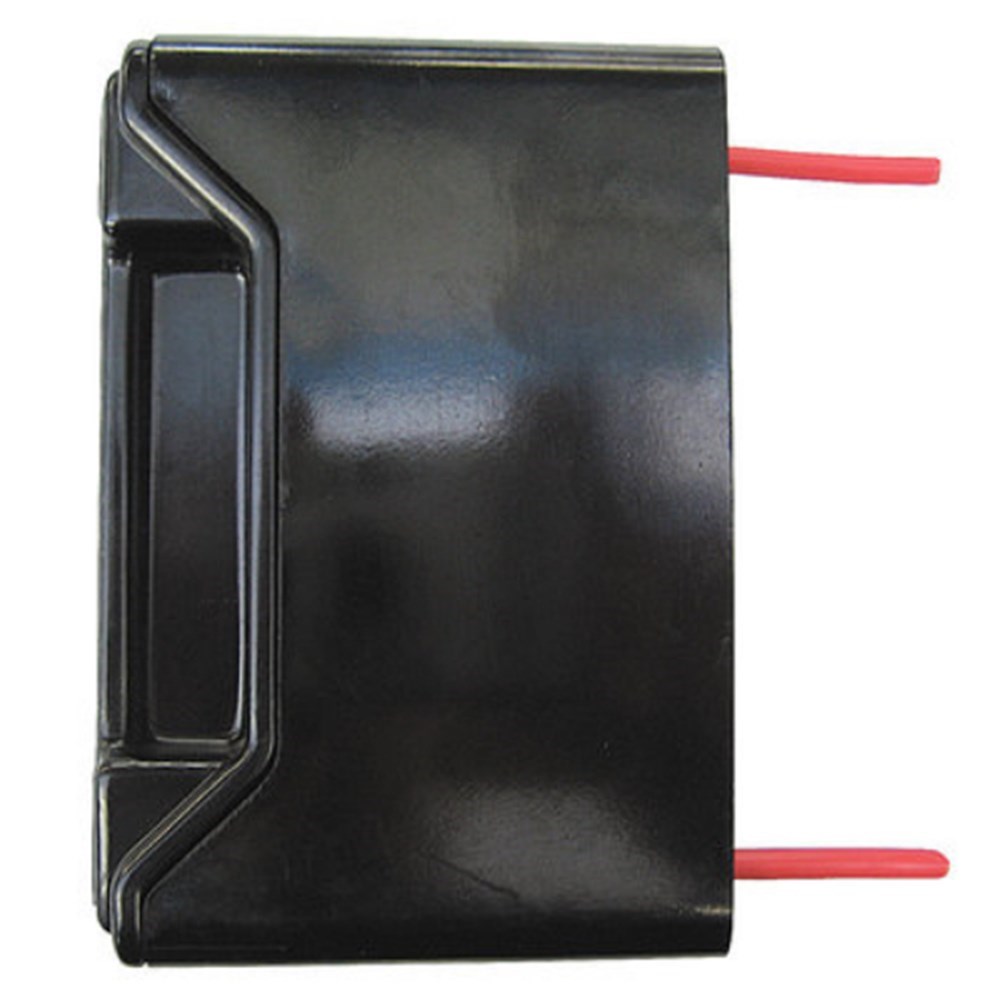

IPD RS32BW Fuse Fitting 32A 690VAC Black Back Wired IP20 For: TIA

Product Code: RS32BW

  • Accessory with 32 A rated current
  • Compact size: 32x103x70 mm
  • Complies with BS, AS, IEC standards
  • Back wired connection for easy setup
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Fitting
Brand
IPD
Series
Red Spot
Application
LV fuse fitting for utility and industrial installations

Electrical

Rated Current (In)
32A
Rated Voltage (Ur)
690V AC
No. of Poles
1P

Mechanical

Cable Entry
16 mm²
Colour
Black
Fixing Centres
73mm
Material
Flame-retardant non-hygroscopic material
Mounting
Screw
Connection/Termination
Back wire

Dimensions & Physical Data

Depth
70mm
Height
103mm
Width
32mm

Environmental

IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
BS 88-2, AS 60269, IEC 269-2-1

Documents

IPD Product Catalogue V17
