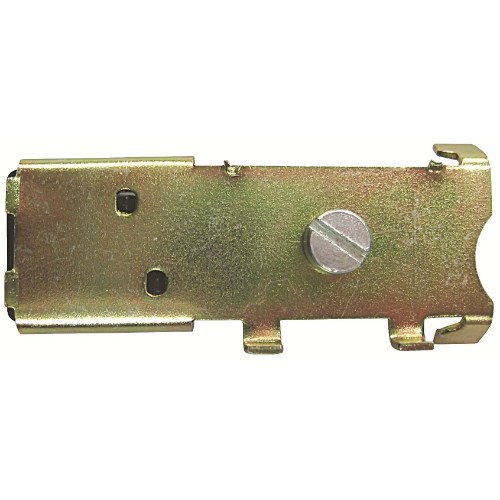

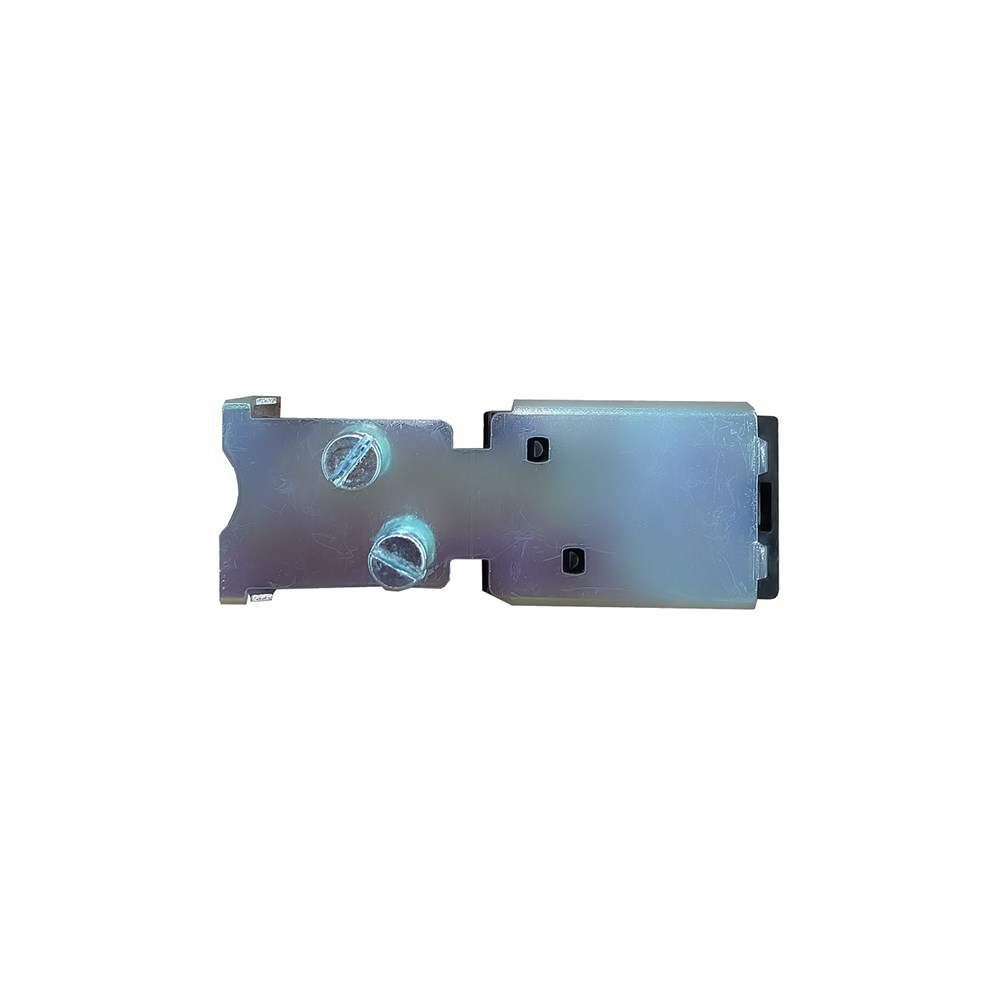

IPD RS32A DIN Rail Adaptor 32A 690VAC IP20 For: RS32H RSM63H

Product Code: RS32A

  • Accessory for RS32H, RSM63H models
  • Handles up to 32 A current
  • Supports 690 VAC voltage
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Fitting Accessory
Brand
IPD
Series
Red Spot
Application
LV fuse fitting for utility and industrial installations

Electrical

Rated Current (In)
32A
Rated Voltage (Ur)
690V AC
No. of Poles
1P

Mechanical

Cable Entry
25 sq-mm
Colour
Black
Fixing Centres
73mm
Material
Flame-retardant non-hygroscopic material
Mounting
DIN rail

Dimensions & Physical Data

Depth
70mm
Height
103mm
Width
32mm

Environmental

IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
BS 88-2, AS 60269, IEC 269-2-1

Documents

IPD Product Catalogue V17
