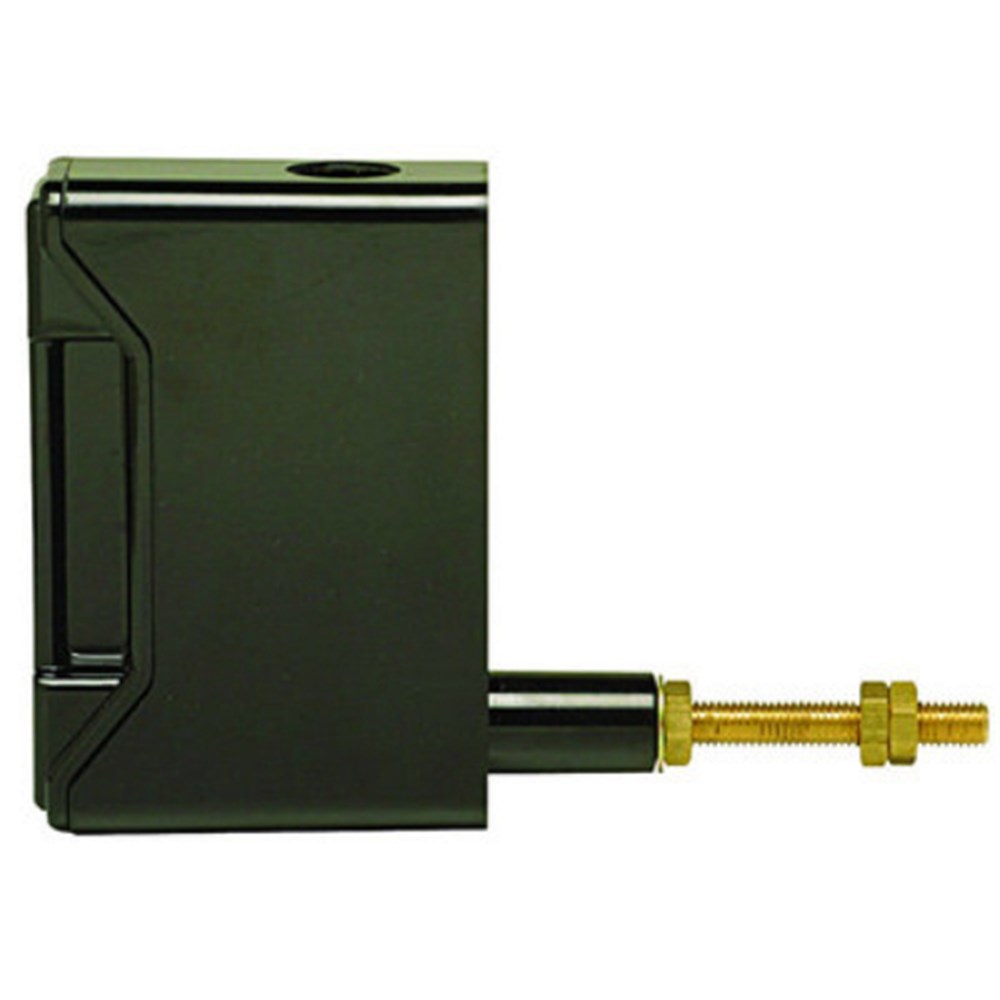

IPD RS20PH Fuse Fitting 20A 690VAC Black 1 Stud Front/Back Connected IP20 For: NIT

Product Code: RS20PH

  • Rated for 20 A and 690 VAC
  • Compact size: 27x79x55 mm
  • Black finish with IP20 protection
  • Front/back connection via 1 stud
  • Screw mounting, fits NIT systems
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Fitting
Brand
IPD
Series
RS
Application
To mount fuse links and provide protection for low-voltage circuits

Electrical

Rated Current (In)
20A
Rated Voltage (Ur)
690V AC
To Suit HRC Fuse Link
NIT

Mechanical

Colour
Black
Fixing Centres
44.5
Max. Cable Entry (mm)
10mm
Connection/Termination
Front connected/back connected, 1 stud

Dimensions & Physical Data

Height
79
Length
55
Width
27

Safety, Standards & Compliance

Standards and Approvals
BS 88-2, AS 60269, IEC 269-2-1

Documents

IPD Product Catalogue V17
