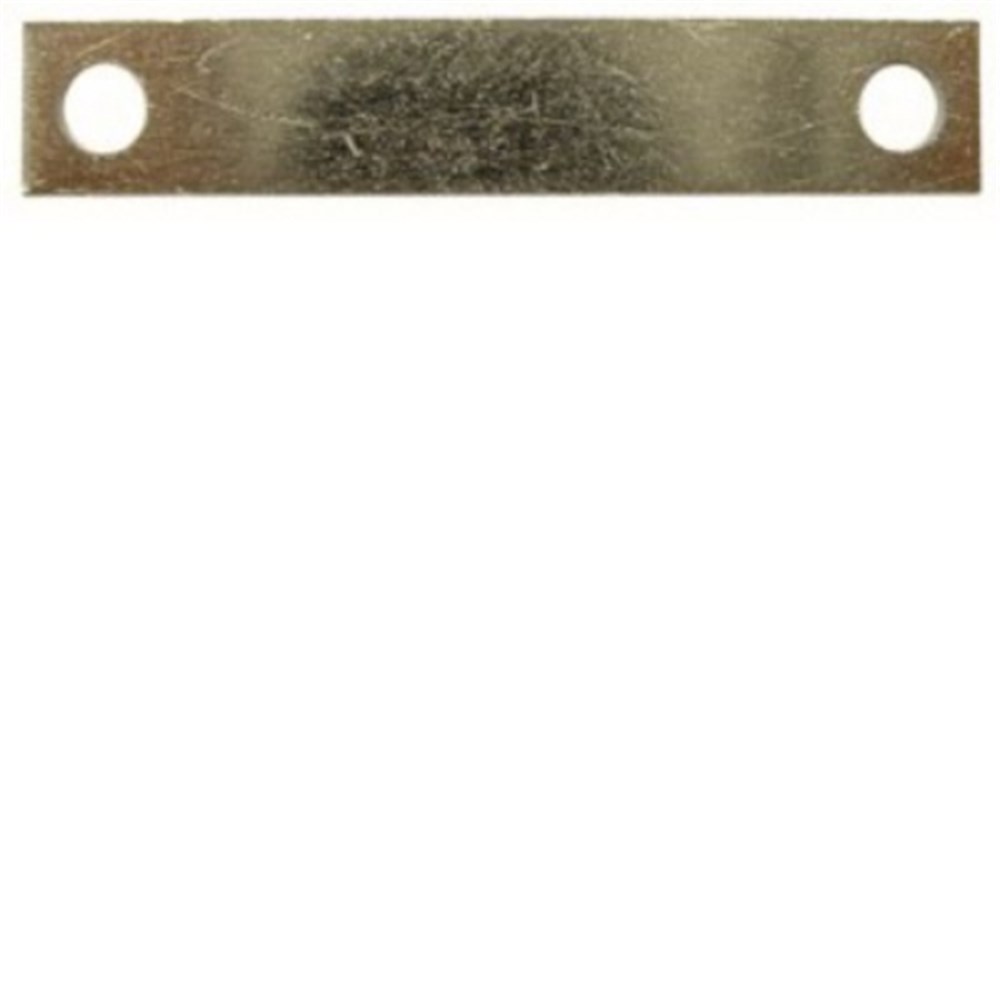

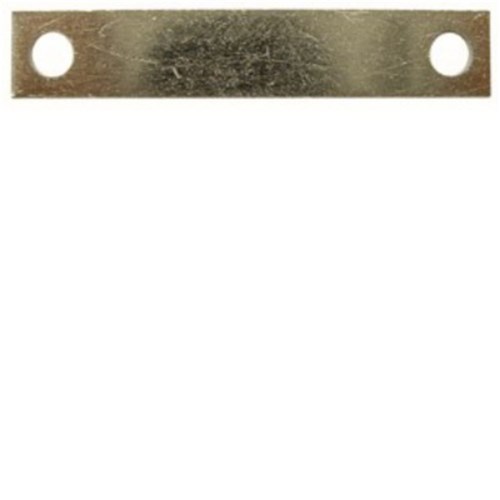

IPD RS20CLINK Neutral Link 20A 690VAC IP20 For: 44.5mm Fixing Centres

Product Code: RS20CLINK

  • Accessory rated for 20 A current
  • Operates up to 690 VAC
  • IP20 protection rating
  • Fits 44.5 mm fixing centres
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Fitting Accessory
Brand
IPD
Series
Red Spot
Application
LV fuse fitting for utility and industrial installations

Electrical

Rated Current (In)
20A
Rated Voltage (Ur)
690V AC
No. of Poles
1P

Mechanical

Cable Entry
10 sq-mm
Colour
Black
Fixing Centres
44.5mm
Material
Flame-retardant non-hygroscopic material
Mounting
Screw

Dimensions & Physical Data

Depth
55mm
Height
79mm
Weight
0.1296kg
Width
27mm

Environmental

IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
BS 88-2, AS 60269, IEC 269-2-1

Documents

IPD Product Catalogue V17
