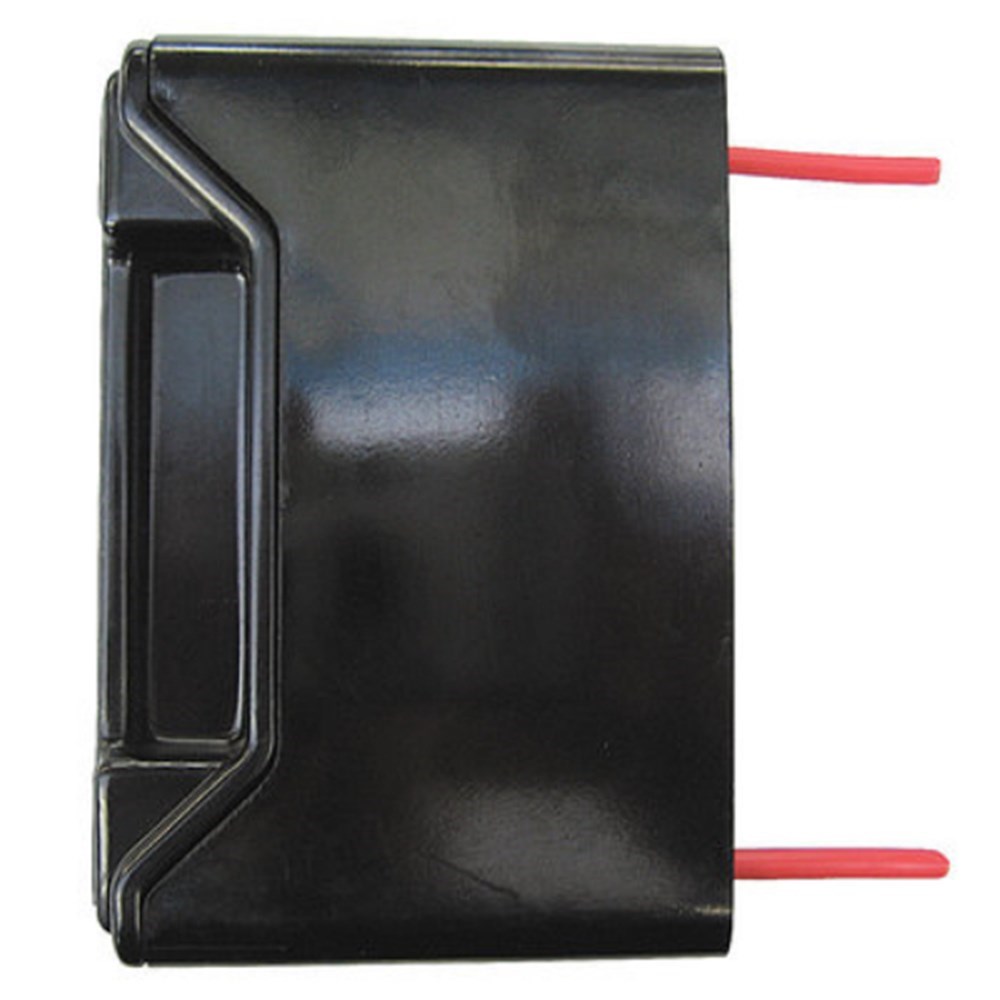

IPD RS20BW Fuse Fitting 20A 690VAC Black Back Wired IP20 For: NIT

Product Code: RS20BW

  • Rated for 20 A and 690 VAC
  • Compact size: 27x79x55 mm
  • Complies with BS, AS, IEC standards
  • IP20 protection rating
  • Back wired connection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Fitting
Brand
IPD
Series
Red Spot
Application
LV fuse fitting for utility and industrial installations

Electrical

Rated Current (In)
20A
Rated Voltage (Ur)
690V AC
No. of Poles
1P

Mechanical

Cable Entry
10 mm²
Colour
Black
Fixing Centres
44.5mm
Material
Flame-retardant non-hygroscopic material
Mounting
Screw
Connection/Termination
Back wire

Dimensions & Physical Data

Depth
55mm
Height
79mm
Weight
0.1296kg
Width
27mm

Environmental

IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
BS 88-2, AS 60269, IEC 269-2-1

Documents

IPD Product Catalogue V17
