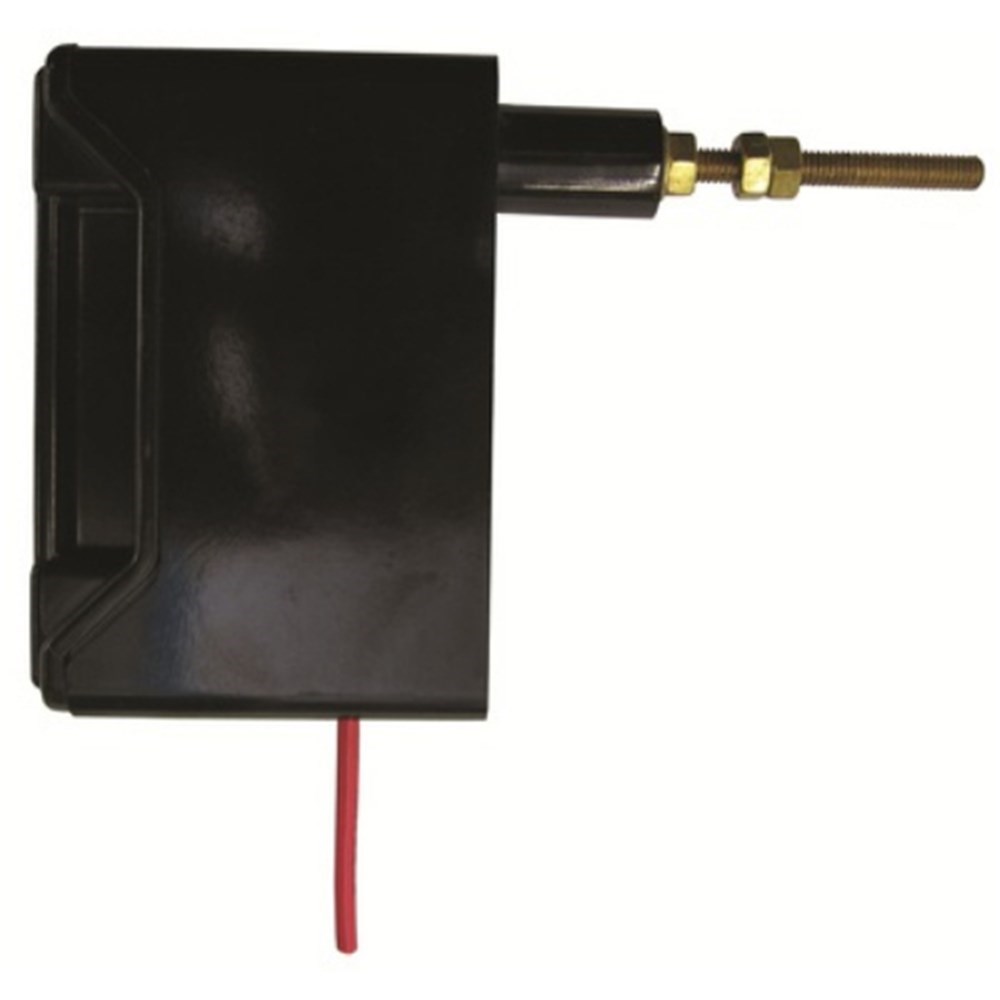

IPD RS200PH Fuse Fitting 200A 690VAC Black 1 Stud Front/Back Connected IP20 For: TC TF

Product Code: RS200PH

  • Accessory for TC, TF applications
  • Rated 200A, 690VAC for robust use
  • IP20 protection against solid objects
  • Compact design: 70x216x137 mm
  • Screw mounting with 111 mm centres
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Fitting
Brand
IPD
Series
Red Spot
Application
LV fuse fitting for utility and industrial installations

Electrical

Rated Current (In)
200A
Rated Voltage (Ur)
690V AC
No. of Poles
1P

Mechanical

Cable Entry
120 sq-mm
Colour
Red
Fixing Centres
111mm
Material
Flame-retardant non-hygroscopic material
Mounting
Screw
Connection/Termination
2 stud rear connection

Dimensions & Physical Data

Depth
137mm
Height
216mm
Weight
2.1kg
Width
70mm

Environmental

IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
BS 88-2, AS 60269, IEC 269-2-1

Documents

IPD Product Catalogue V17
