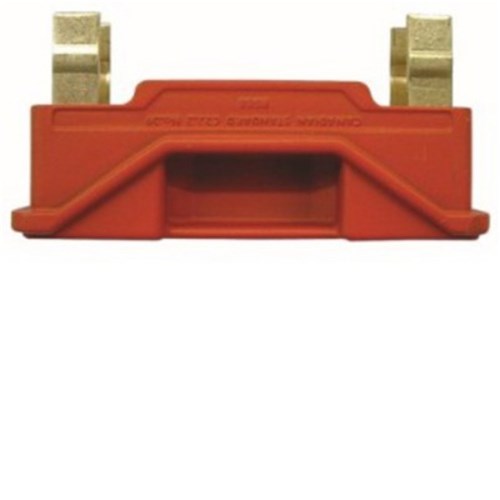

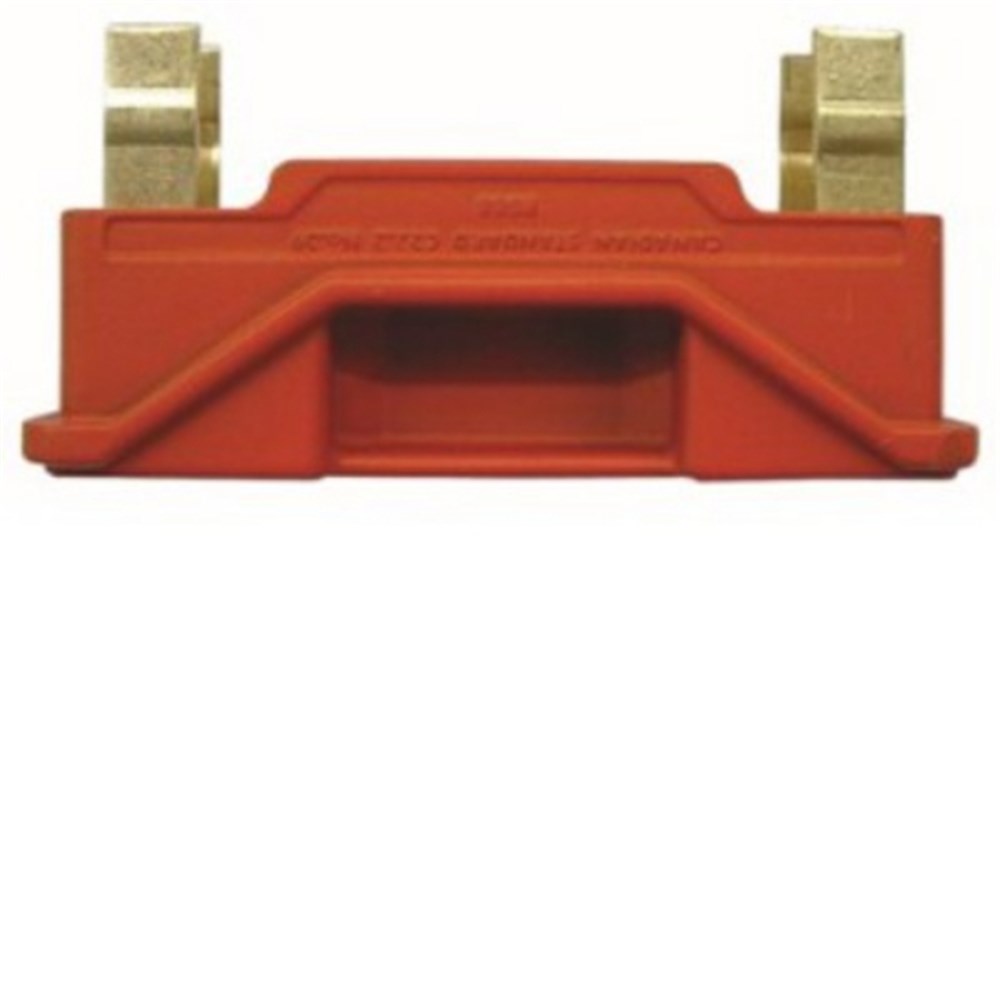

IPD RS100RED Isolation Carrier 100A 690VAC Red IP20 For: 402146 Circuit Isolation

Product Code: RS100RED

  • Accessory for 402146 Circuit Isolation
  • Rated Current: 100 A
  • Rated Voltage: 690 VAC
  • IP20 Protection Rating
  • Red Colour
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Fitting Accessory
Brand
IPD
Series
Red Spot
Application
LV fuse fitting for utility and industrial installations

Electrical

Rated Current (In)
100A
Rated Voltage (Ur)
690V AC
No. of Poles
1P

Mechanical

Cable Entry
95 sq-mm
Colour
Red
Fixing Centres
94mm
Material
Flame-retardant non-hygroscopic material
Mounting
Screw

Dimensions & Physical Data

Depth
100mm
Height
140mm
Width
51mm

Environmental

IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
BS 88-2, AS 60269, IEC 269-2-1
