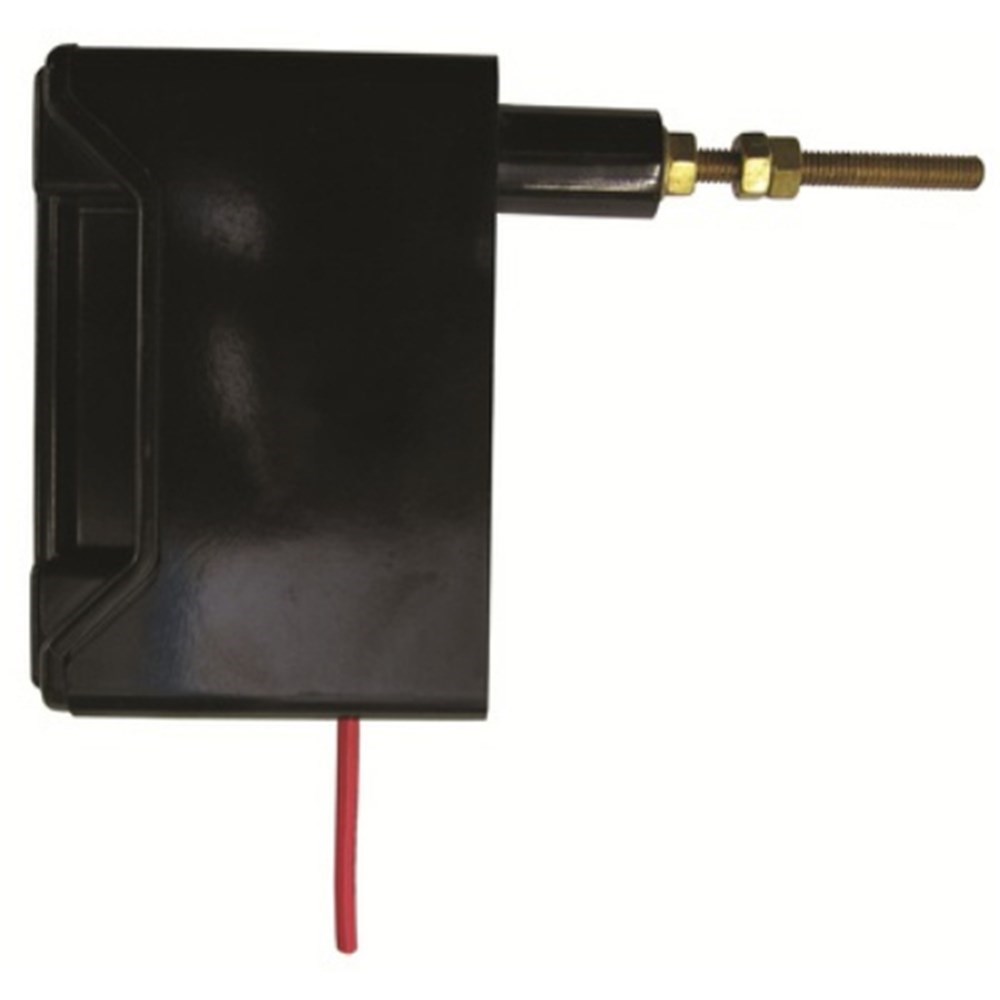

IPD RS100PH Fuse Fitting 100A 690VAC Black 1 Stud Front/Back Connected IP20 For: TB & TCP

Product Code: RS100PH

  • Rated for 100 A, 690 VAC applications
  • Compact size: 51mm W x 140mm H x 100mm D
  • IP20 protection ensures safety
  • Front/back connection with 1 stud
  • Compatible with TCP systems
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Fitting
Brand
IPD
Series
RS
Application
To mount fuse links and provide protection for low-voltage circuits

Electrical

Rated Current (In)
100A
Rated Voltage (Ur)
690V AC
To Suit HRC Fuse Link
TB TCP

Mechanical

Colour
Black
Fixing Centres
94
Max. Cable Entry (mm)
95mm
Connection/Termination
Front connected/back connected, 1 stud

Dimensions & Physical Data

Height
140
Length
100
Width
51

Safety, Standards & Compliance

Standards and Approvals
BS 88-2, AS 60269, IEC 269-2-1

Documents

IPD Product Catalogue V17
