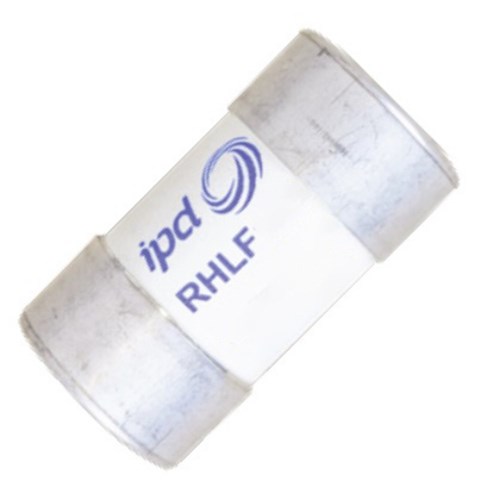

IPD RHLF80 Fuse Link 80A 415VAC Ferrule Fuse Cylindrical 57mm L x 30mm D 33kA gG

Product Code: RHLF80

  • 80A rated DIN ferrule
  • Complies with AS60269-3, IEC 60269-3, BS 1361
  • Rated voltage of 415 VAC
  • Cylindrical body: 57mm L x 30mm D
  • High breaking capacity: 33 kA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
IPD
Series
RH
Application
Service cut-out / distribution protection

Electrical

Utilization Category
gG
Breaking Capacity
33kA
Rated Current (In)
80A
Rated Voltage (Ur)
415V AC

Mechanical

Body Style
Cylindrical
Fixing Centres
Clip-in carrier
Material
Ceramic body

Dimensions & Physical Data

Size
57 x 30 mm
