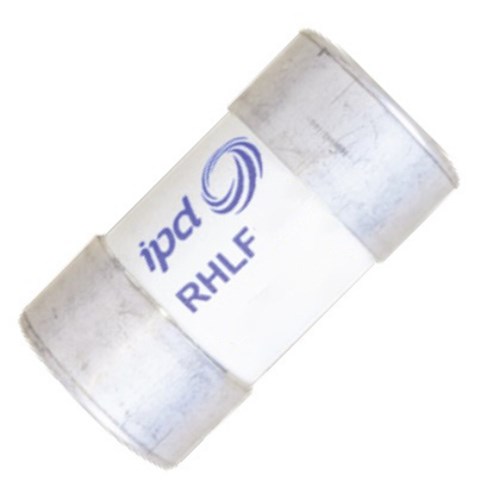

IPD RHLF50 Fuse Link 50A 415VAC Ferrule Fuse Cylindrical 57mm L x 30mm D 33kA gG

Product Code: RHLF50

  • Supports 50A rated current
  • Complies with AS60269-3, IEC 60269-3, BS 1361
  • Operates at 415 VAC
  • Cylindrical body: 57mm L x 30mm D
  • High breaking capacity of 33 kA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Application
Consumer fuse protection

Electrical

Rated Current (In)
50A
Rated Voltage (Ur)
415V

Mechanical

Body Style
Cylindrical
Indicators
Without indicator
Material
Body: Ceramic; Contact: Silver plated copper
Size Code
57 x 30
Connection/Termination
Ferrule end caps

Dimensions & Physical Data

Length
57mm
Width
Ø 30mm

Safety, Standards & Compliance

Standards and Approvals
AS 60269

Documents

IPD Product Catalogue V17
