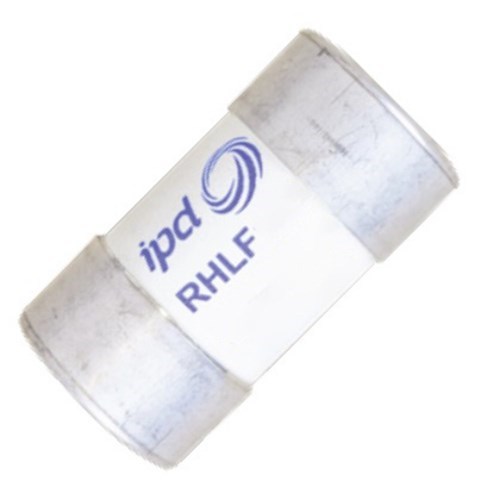

IPD RHLF100 Fuse Link 100A 415VAC Ferrule Fuse Cylindrical 57mm L x 30mm D 33kA gG

Product Code: RHLF100

  • Rated for 100 A and 415 VAC applications
  • Compliant with AS60269-3, IEC 60269-3 standards
  • High breaking capacity of 33 kA
  • Compact cylindrical body: 57 mm L x 30 mm D
  • Efficient power rating at 5.8 W
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
IPD
Series
RH
Application
Service cut-out / distribution protection

Electrical

Utilization Category
gG
Breaking Capacity
33kA
Rated Current (In)
100A
Rated Voltage (Ur)
415V AC

Mechanical

Body Style
Cylindrical
Fixing Centres
Clip-in carrier
Material
Ceramic body

Dimensions & Physical Data

Size
57 x 30 mm

Documents

IPD Product Catalogue V17
