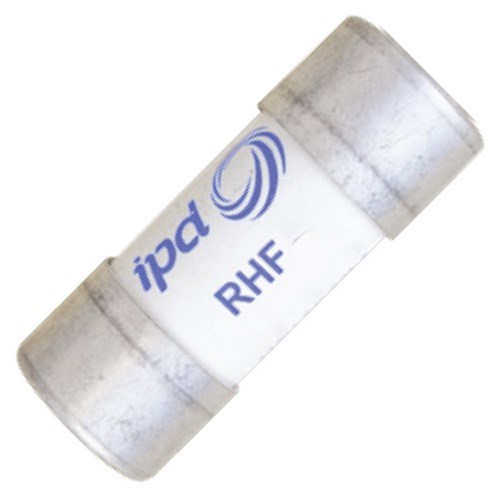

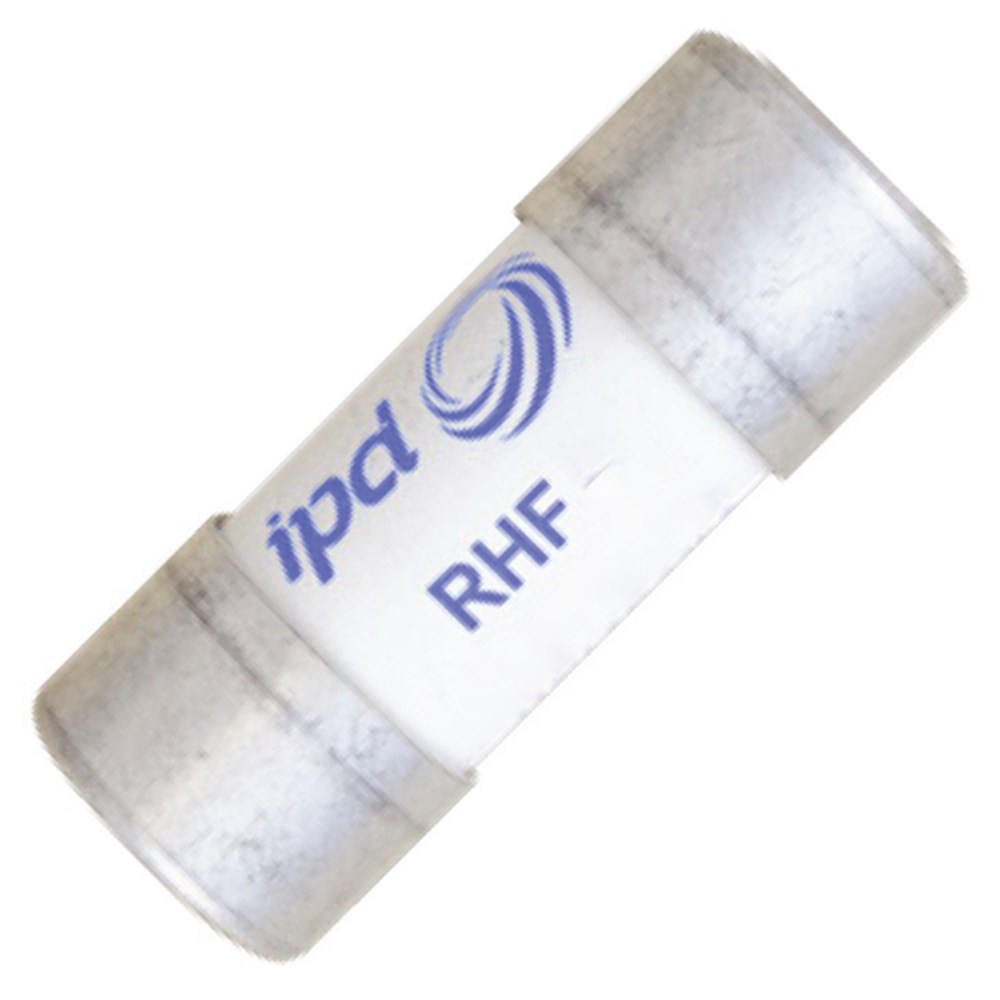

IPD RHF40 Unit Fuse-Link 40A 415VAC Ferrule Fuse Cylindrical 57mm L x 22mm D 33kA gG

Product Code: RHF40

  • Rated for 40 A current
  • Supports up to 415 VAC voltage
  • Complies with AS60269-3, IEC 60269-3, BS 1361 standards
  • High breaking capacity of 33 kA
  • Compact cylindrical body design
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
IPD
Series
RH
Application
Service cut-out / distribution protection

Electrical

Utilization Category
gG
Breaking Capacity
33kA
Rated Current (In)
40A
Rated Voltage (Ur)
415V AC

Mechanical

Body Style
Cylindrical
Fixing Centres
Clip-in carrier
Material
Ceramic body

Dimensions & Physical Data

Size
57 x 22 mm

Documents

IPD Product Catalogue V17
