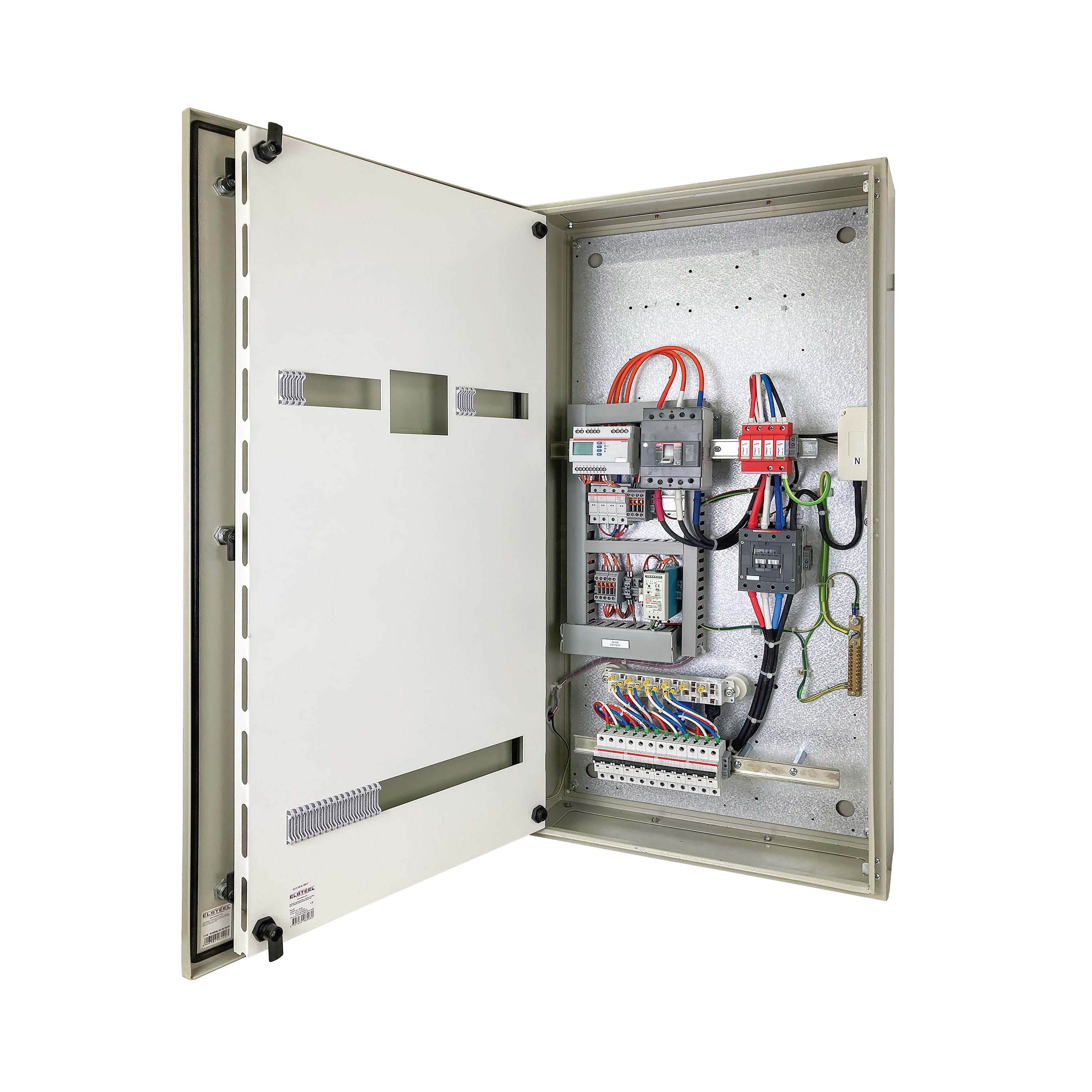

IPD PVAGPS4P69AC18 PV Enclosure 4-P 230/400VAC 100 A 69 kVA RAL 7035 Grey IP65

Product Code: PVAGPS4P69AC18

  • Grid protection system rated at 100 A
  • Supports 69 kVA power capacity
  • Suitable for 230/400 VAC systems
  • IP65-rated for robust protection
  • Durable powder-coated mild steel construction
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
4P Grid protection system
Brand
IPD
Series
PVAGPS
Application
Integrated photovoltaic grid protection and AC combining for up to six inverter feeds

Electrical

Current Rating
100 A
Inputs (Strings)
Up to 6 inverter inputs
kVA Rating
69 kVA
Output (Feeds)
Utility grid / main switchboard

Mechanical

Enclosure Material
Powder-coated mild steel, RAL 7035 light grey

Dimensions & Physical Data

Depth
200 mm
Height
1200 mm
Width
600 mm

Environmental

IP Rating
IP65

Documents

IPD Product Catalogue V17
