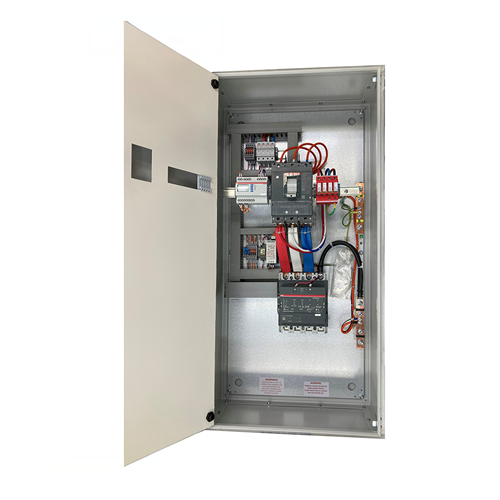

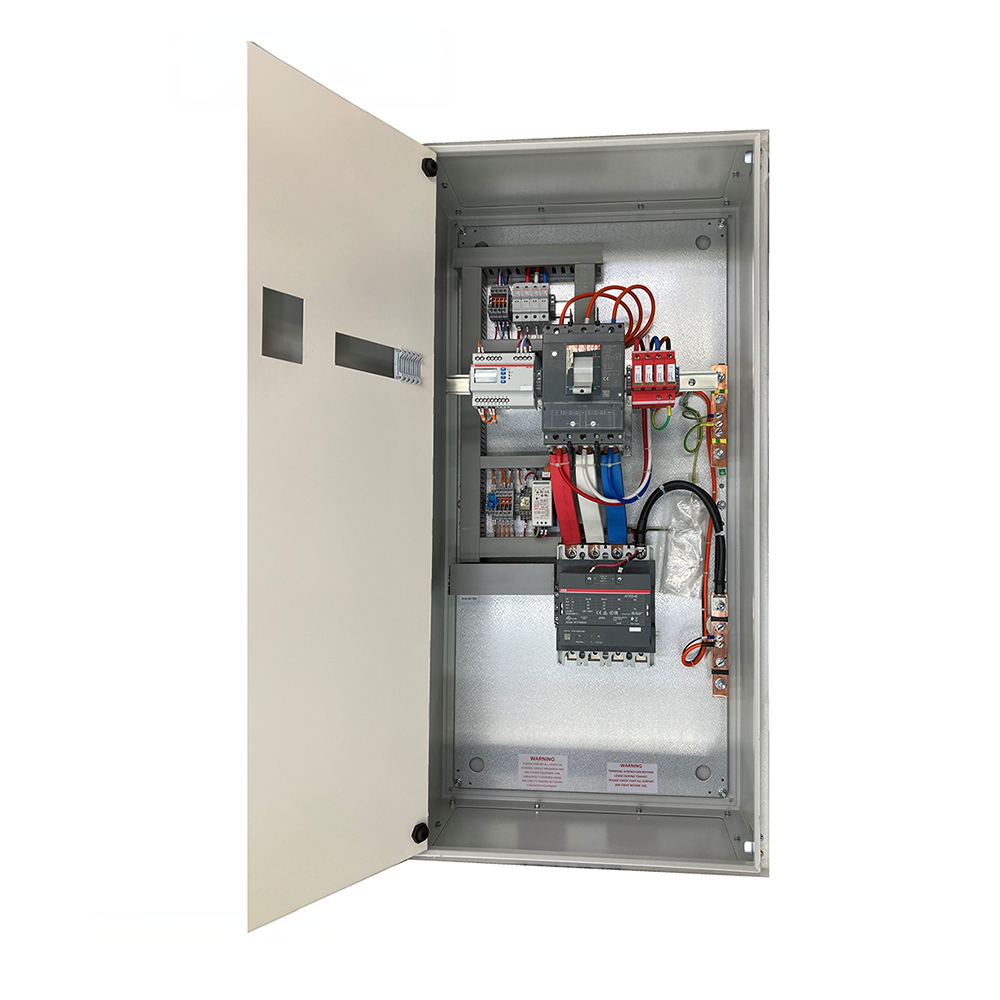

IPD PVAGPS4P436 PV Enclosure 4-P 230/400VAC 500 A 436 kVA RAL 7035 Grey IP65

Product Code: PVAGPS4P436

  • Handles up to 500 A current
  • Supports 436 kVA power capacity
  • Operates at 230/400 VAC voltage
  • IP65 rated for robust protection
  • Durable powder-coated mild steel
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
4P Grid protection system
Brand
IPD
Series
PVAGPS
Application
Secondary grid/interface protection for photovoltaic generation

Electrical

Current Rating
500 A
Inputs (Strings)
PV inverter / generation AC
kVA Rating
436 kVA
Output (Feeds)
Utility grid / main switchboard

Mechanical

Enclosure Material
Powder-coated mild steel, RAL 7035 light grey

Dimensions & Physical Data

Depth
200 mm
Height
1200 mm
Width
600 mm

Environmental

IP Rating
IP65

Documents

IPD Product Catalogue V17
