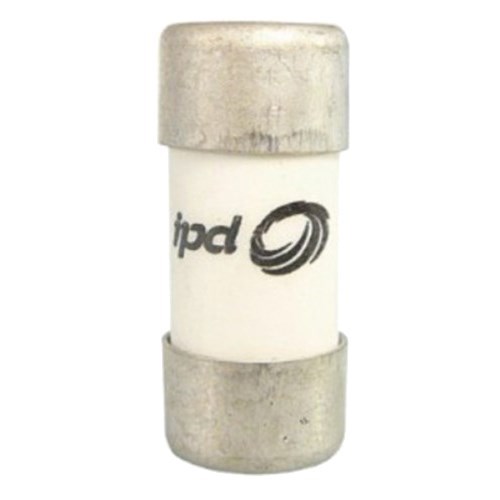

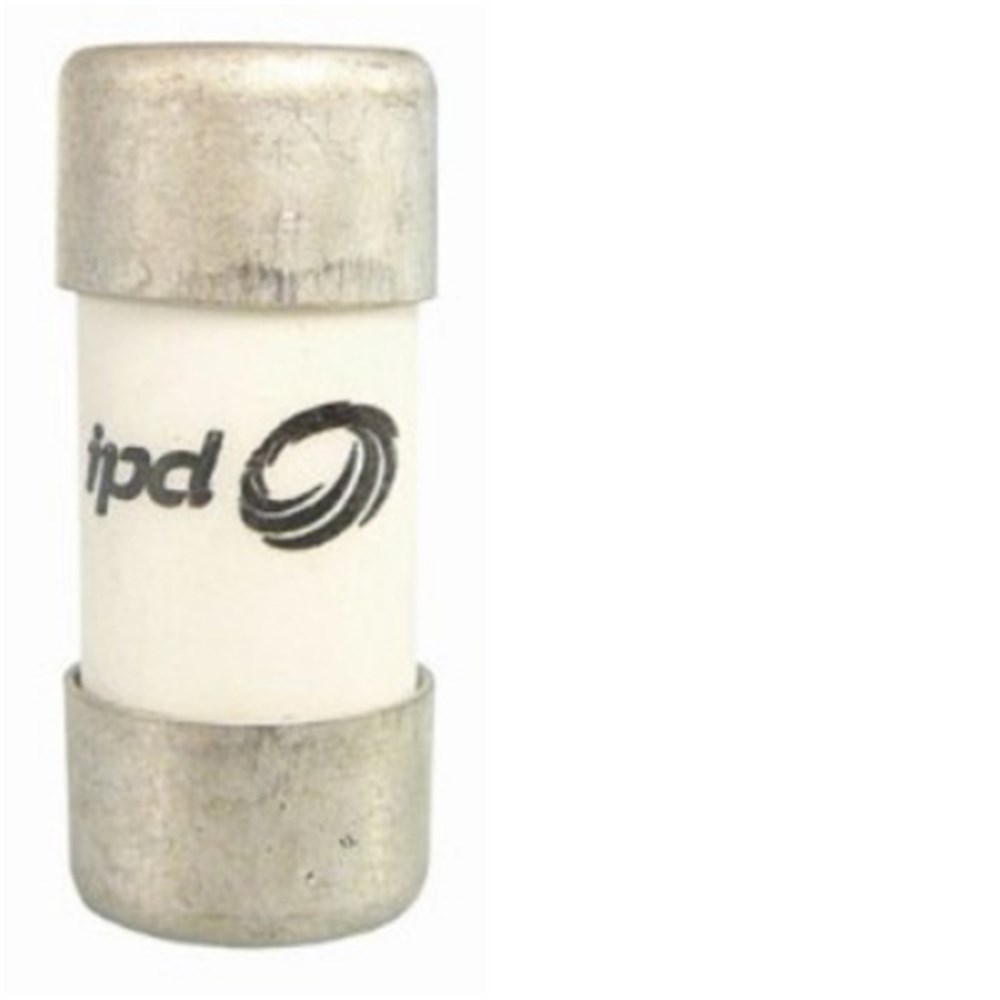

IPD PL2 Unit Fuse-Link 2A 240VAC Ferrule Fuse Cylindrical 25.4mm L x 6.3mm D 6kA Fast Acting gG

Product Code: PL2

  • Supports up to 2 A current
  • Complies with IEC & BS standards
  • Operates at 240 VAC voltage
  • Compact 25.4 mm x 6.3 mm size
  • High breaking capacity of 6 kA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Consumer Unit Fuse - Link
Brand
Lawson
Application
Domestic / light commercial circuit protection

Electrical

Utilization Category
gG
Breaking Capacity
6 kA AC
Rated Current (In)
0.083333
Rated Voltage (Ur)
240 V AC
Speed Class
gG / general purpose

Mechanical

Body Style
Cylindrical
Indicators
Without indicator
Material
Ceramic body, metal end caps
Mounting
Ferrule
Connection/Termination
Ferrule end caps

Dimensions & Physical Data

Length
25.4 mm
Width
Ø 6.3 mm

Safety, Standards & Compliance

Standards and Approvals
BS 1362; IEC 60269-3
