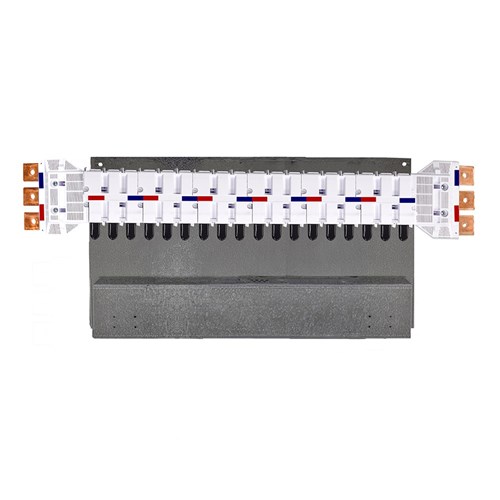

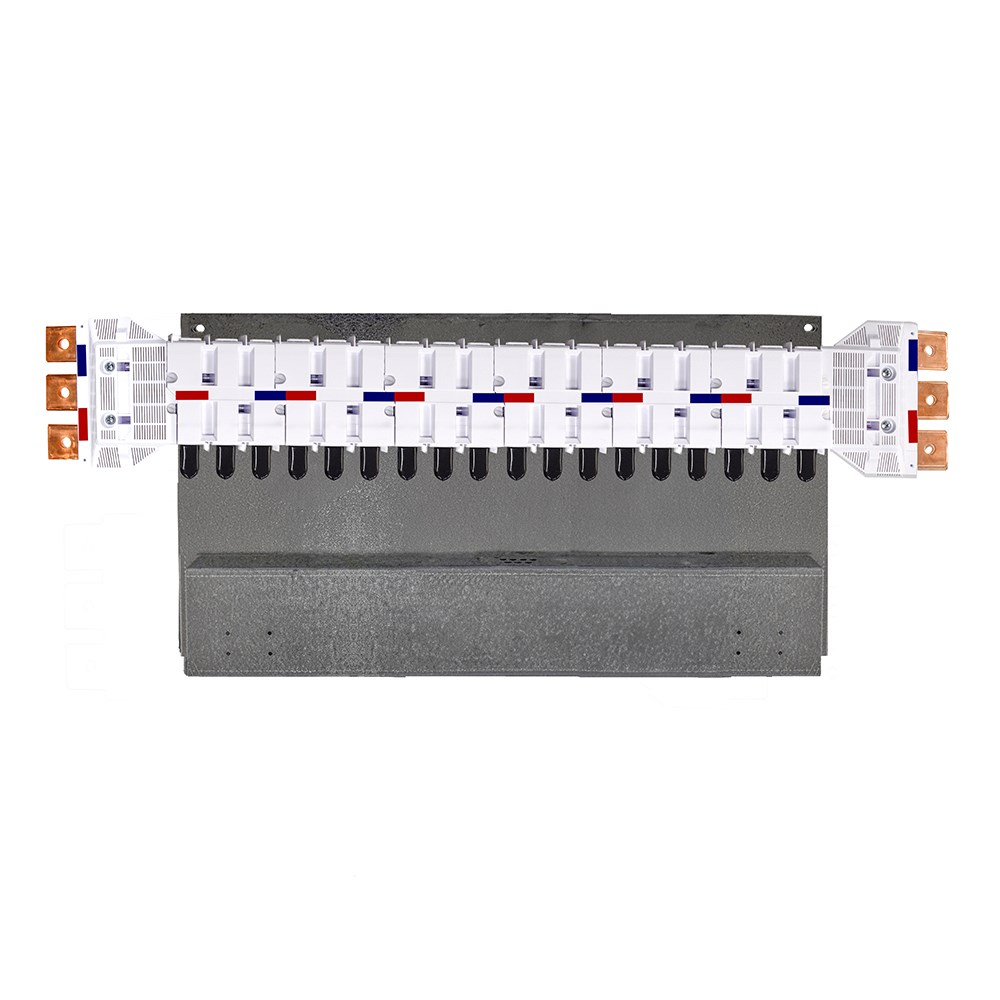

IPD NY80XT4US18 Nybus MCCB Chassis 18-P 800A Universal Single Sided Feed XT4 For: ABB MCCB-XT3 ABB MCCB-XT4

Product Code: NY80XT4US18

  • 800 A rated current capacity
  • Withstands 50 kA short circuit
  • 18 poles for flexible use
  • Universal single-sided feed type
  • Complies with AS/NZS 61439.1:2016 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB Chassis
Brand
IPD
Series
NYBUS
Application
MCCB chassis / busbar system

Electrical

Location of Connection
Universal feed, Single sided
No. of Phases
3 phase
Short Circuit Withstand
65 kA at 1s
Rated Current (In)
800 A
Nominal Voltage
415 V
No. of Poles
18P

Dimensions & Physical Data

Depth
87.5 mm
Height
1128 mm
Length
134.6 mm
Width
471 mm

Environmental

IP Rating
IP2X

Safety, Standards & Compliance

Standards and Approvals
AS/NZS – 61439

Documents

IPD Product Catalogue V17
