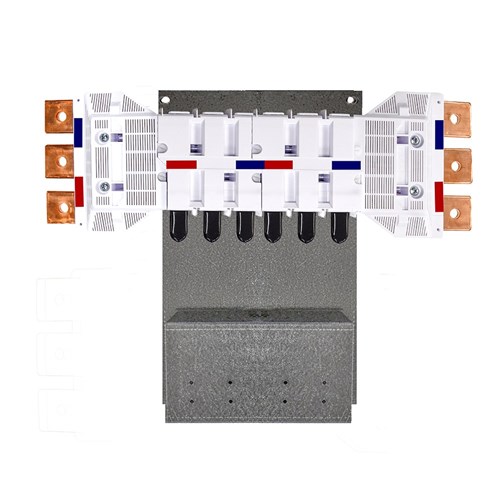

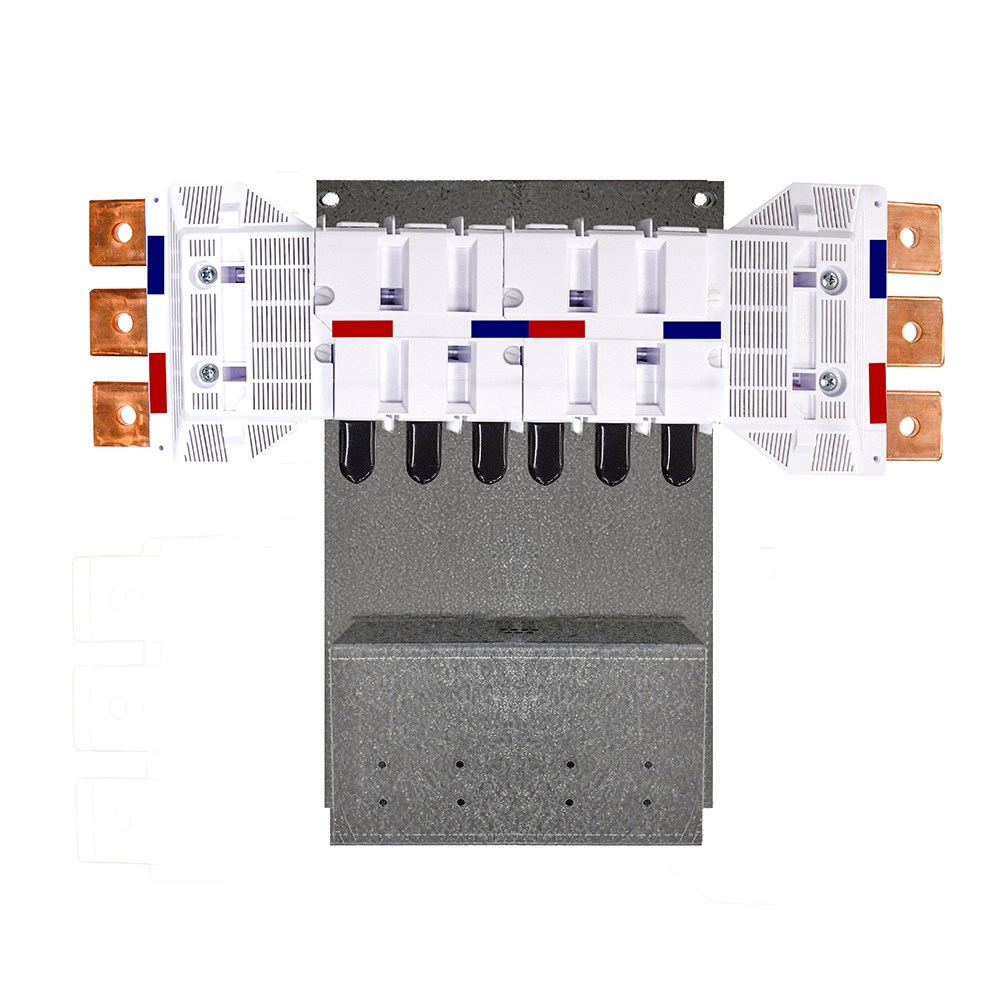

IPD NY80XT4US06 Nybus MCCB Chassis 6-P 800A Universal Single Sided Feed XT4 For: ABB MCCB-XT3 ABB MCCB-XT4

Product Code: NY80XT4US06

  • Rated for 800 A current capacity
  • Withstands short circuits up to 50 kA
  • Features 6 poles for versatile use
  • Universal single-sided feed type
  • Compatible with ABB MCCB-XT3, XT4
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB Chassis
Brand
IPD
Series
NYBUS
Application
MCCB chassis / busbar system

Electrical

Location of Connection
Universal feed, Single sided
No. of Phases
3 phase
Short Circuit Withstand
65kA at 1s
Rated Current (In)
800A
Nominal Voltage
415V
No. of Poles
6P

Dimensions & Physical Data

Depth
87.5mm
Height
498mm
Width
471mm

Environmental

IP Rating
IP2X

Safety, Standards & Compliance

Standards and Approvals
AS/NZS – 61439
