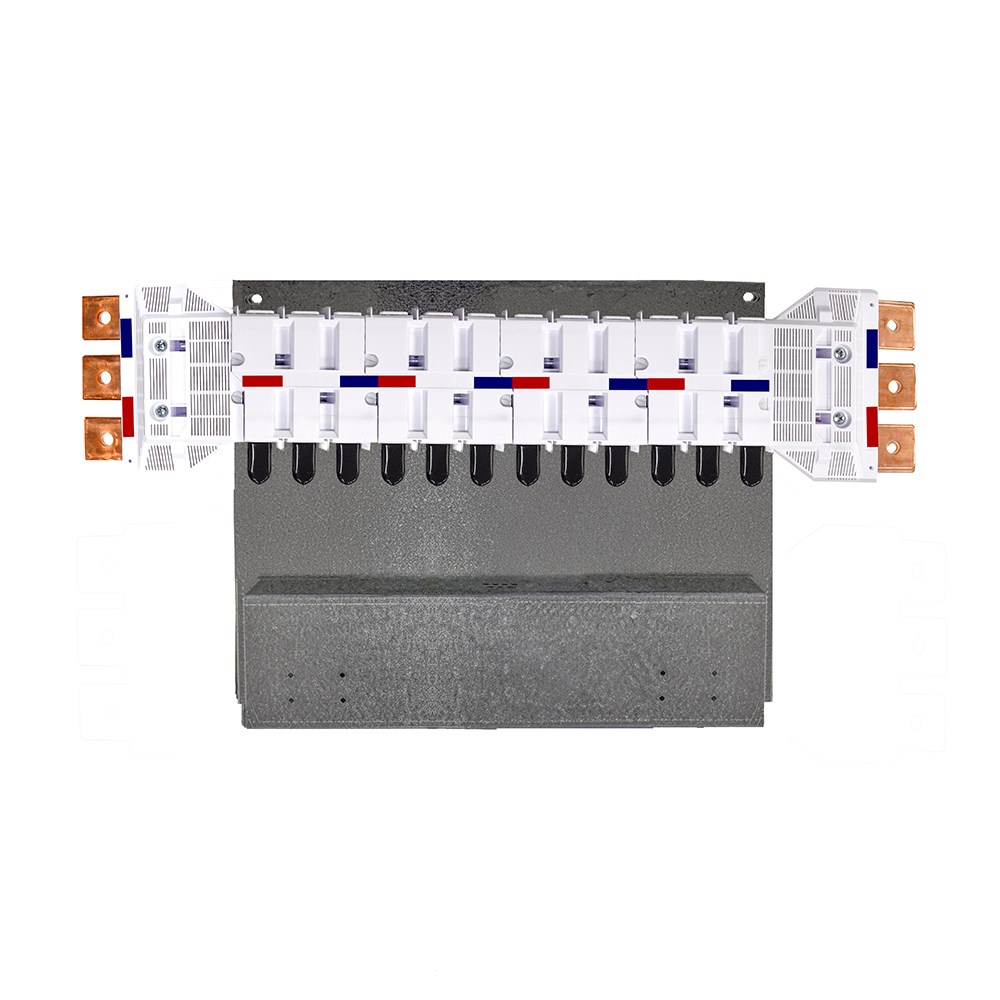

IPD NY80XT4SR12 Nybus MCCB Chassis 12-P 800A Right Top Left Bottom Feed XT4 For: ABB MCCB-XT3 ABB MCCB-XT4

Product Code: NY80XT4SR12

  • Nybus chassis with 800 A rated current
  • Handles up to 50 kA short time currents
  • 12-pole configuration for versatile use
  • Compatible with ABB MCCB-XT3, XT4
  • Meets AS/NZS 61439.1:2016 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB Chassis
Brand
IPD
Application
Use with ABB MCCB-XT4

Electrical

Busbar Pitch
35 mm
No. of Phases
3-phase
Rated Short Time Withstand Current (Icw)
36000A
Rated Current (In)
800A
Nominal Voltage
~690V AC (based on MCCB rating)
No. of Poles
12P

Environmental

IP Rating
IP2X

Safety, Standards & Compliance

Standards and Approvals
AS/NZS 61439.1:2016
