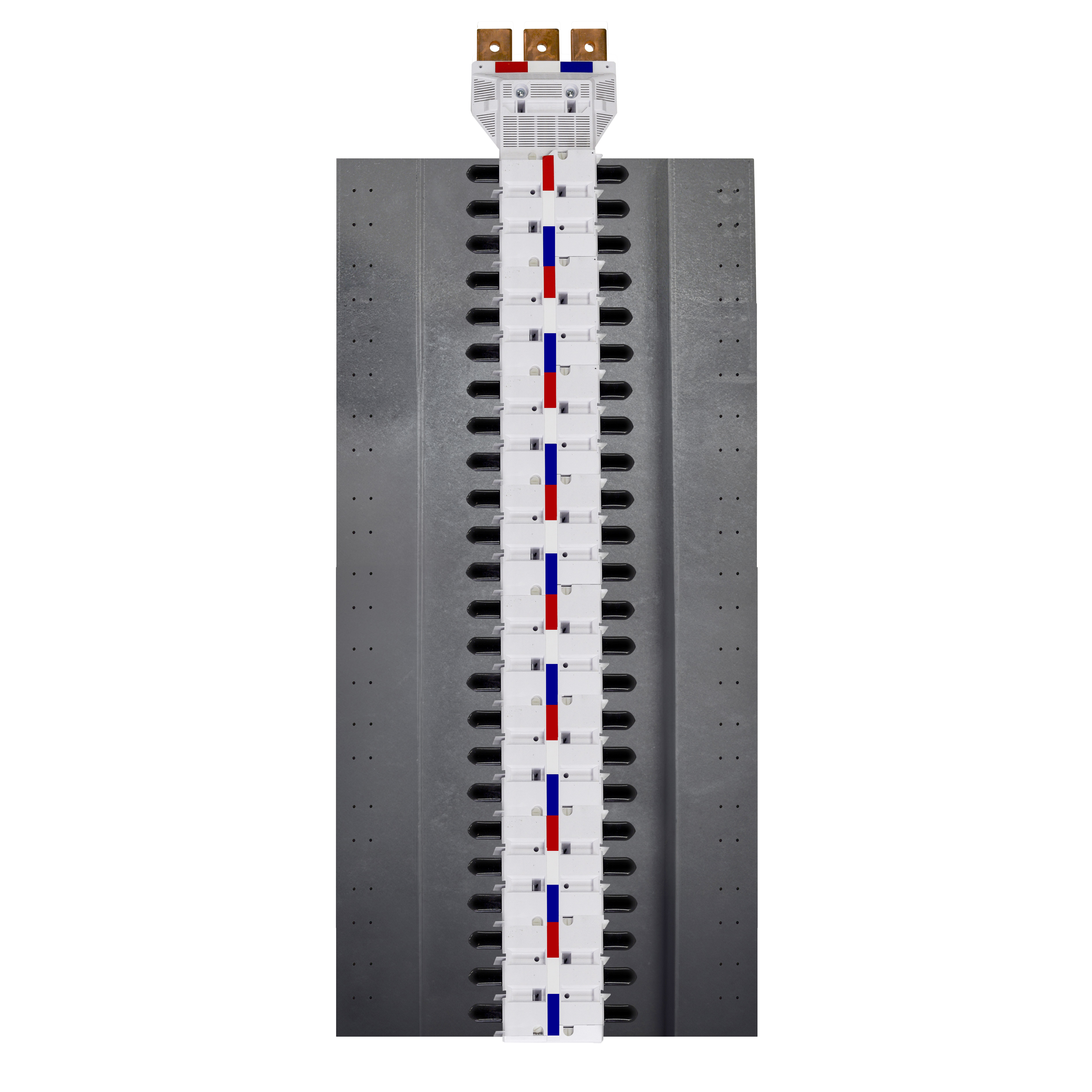

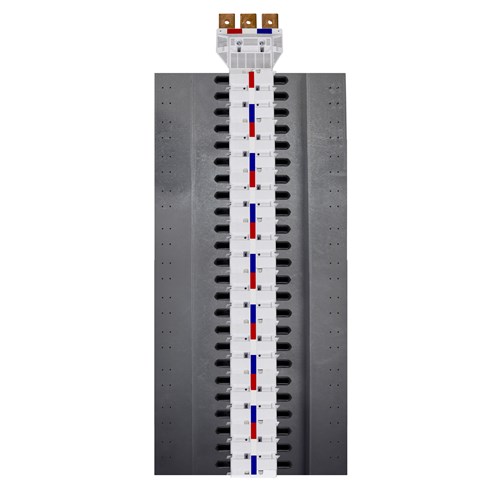

IPD NY80XT4SD48 Nybus MCCB Chassis 48-P 800A Single Feed Double Sided Feed XT4 For: ABB MCCB-XT3 ABB MCCB-XT4

Product Code: NY80XT4SD48

  • Rated for 800 A, suitable for high power needs
  • Withstands short circuits up to 50 kA
  • Supports 48 poles for versatile connections
  • Single feed double-sided configuration
  • Complies with AS/NZS 61439.1:2016 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB Chassis
Brand
IPD
Series
NYBUS
Application
MCCB chassis / busbar system

Electrical

Location of Connection
Single feed, Double sided
No. of Phases
3 phase
Short Circuit Withstand
65kA at 1s
Rated Current (In)
800A
Nominal Voltage
415V
No. of Poles
48P

Dimensions & Physical Data

Depth
87.5mm
Height
1003mm
Width
471mm

Environmental

IP Rating
IP2X

Safety, Standards & Compliance

Standards and Approvals
AS/NZS – 61439

Documents

IPD Product Catalogue V17
