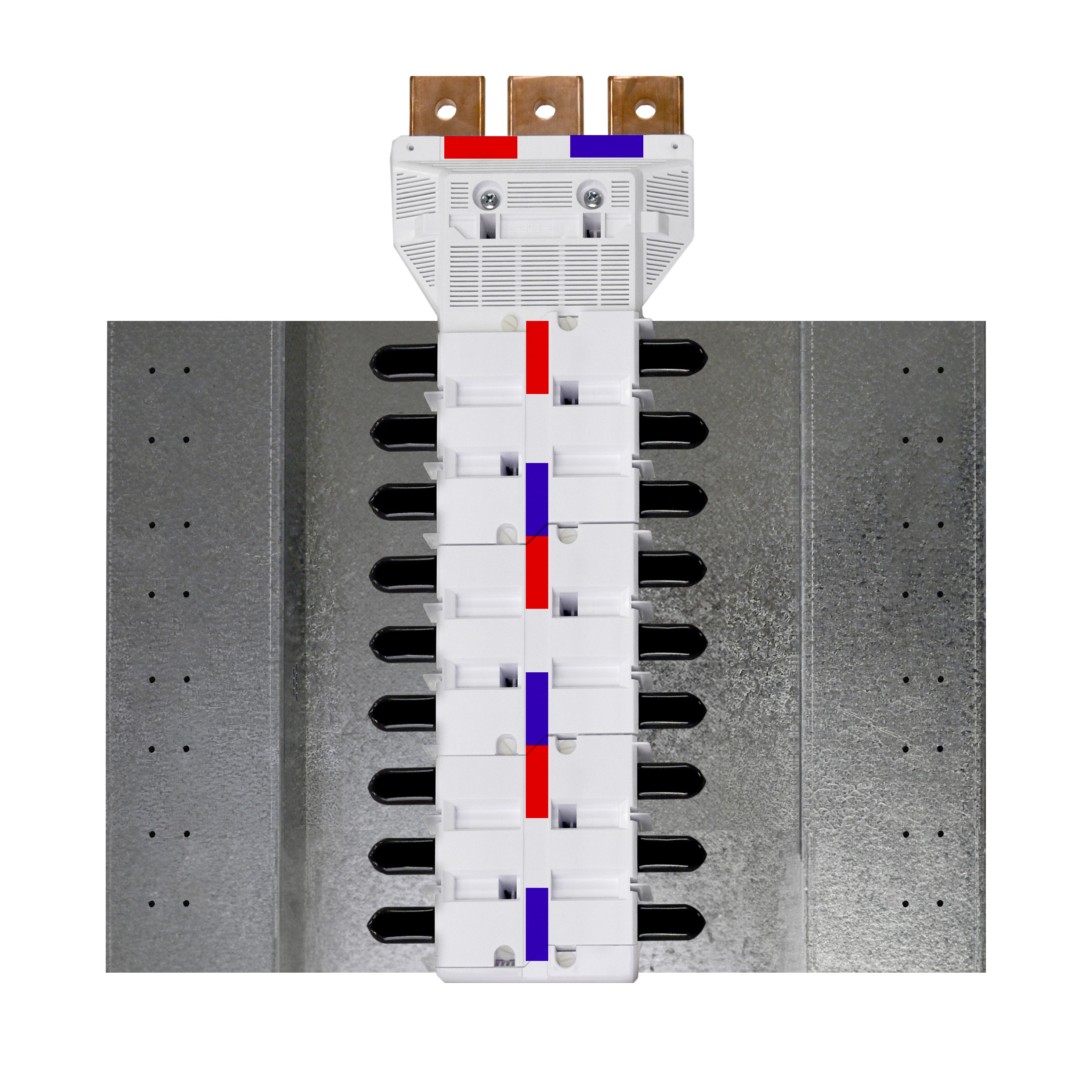

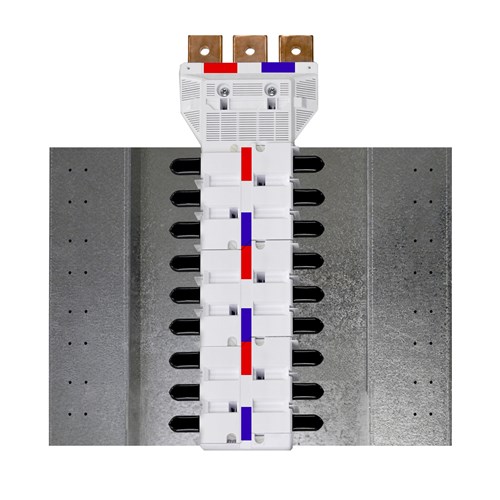

IPD NY80XT4SD18 Nybus MCCB Chassis 18-P 800A Single Feed Double Sided Feed XT4 For: ABB MCCB-XT3 ABB MCCB-XT4

Product Code: NY80XT4SD18

  • Rated for 800 A current capacity
  • Withstands 50 kA short time current
  • Features 18 poles configuration
  • Bulbar cross section of 8 x 40 sq-mm
  • Compatible with ABB MCCB-XT3, XT4
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB Chassis
Brand
IPD
Application
Use with ABB MCCB-XT4

Electrical

Busbar Pitch
35 mm
No. of Phases
3-phase
Rated Short Time Withstand Current (Icw)
36000A
Rated Current (In)
800A
Nominal Voltage
~690V AC (based on MCCB rating)
No. of Poles
18P

Environmental

IP Rating
IP2X

Safety, Standards & Compliance

Standards and Approvals
AS/NZS 61439.1:2016

Documents

IPD Product Catalogue V17
