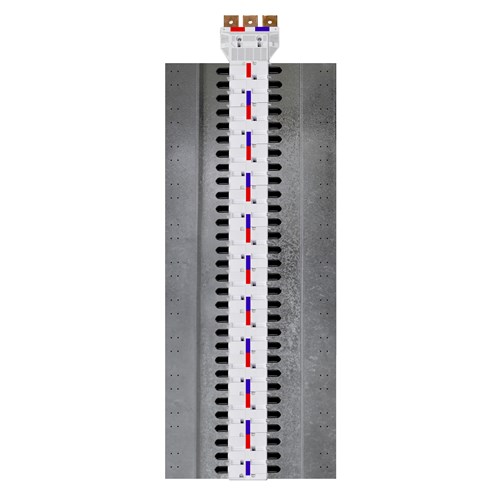

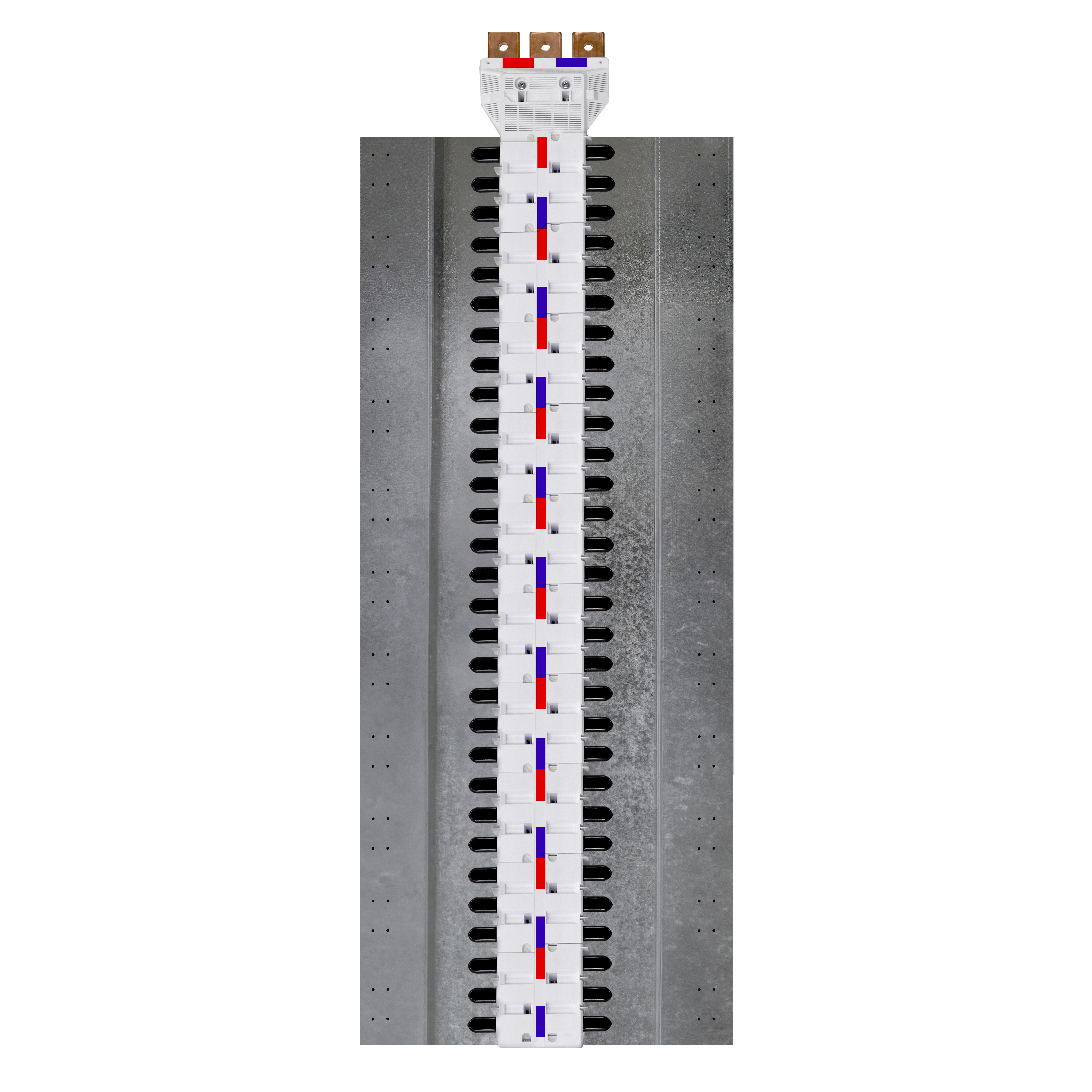

IPD NY80XT2SD60 Nybus MCCB Chassis 60-P 800A Single Feed Double Sided Feed XT2 For: ABB MCCB-XT2

Product Code: NY80XT2SD60

  • 800 A rated current capacity
  • 50 kA short-time withstand
  • 60 poles for extensive connections
  • Single feed, double-sided design
  • Compliant with AS/NZS 61439.1:2016
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB Chassis
Brand
IPD
Series
NYBUS
Application
MCCB chassis / busbar system

Electrical

Location of Connection
Single feed, Double sided
No. of Phases
3 phase
Short Circuit Withstand
65kA at 1s
Rated Current (In)
800A
Nominal Voltage
415V
No. of Poles
60P

Dimensions & Physical Data

Depth
87.5mm
Height
1063mm
Width
390mm

Environmental

IP Rating
IP2X

Safety, Standards & Compliance

Standards and Approvals
AS/NZS – 61439

Documents

IPD Product Catalogue V17
