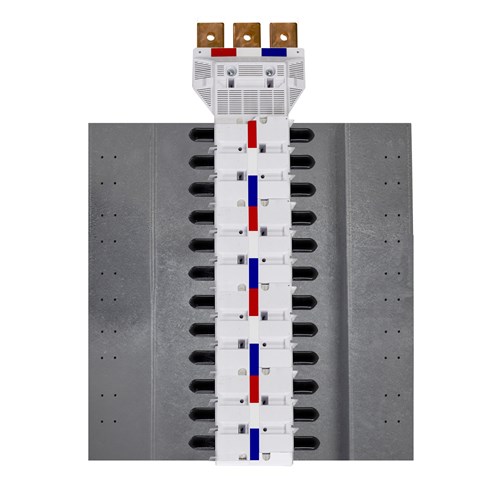

IPD NY80XT2SD24 Nybus MCCB Chassis 24-P 800A Single Feed Double Sided Feed XT2 For: ABB MCCB-XT2

Product Code: NY80XT2SD24

  • 800 A rated current capacity
  • Handles 50 kA short time withstand
  • Features 24 poles for flexibility
  • Compact XT2 frame size
  • Compliant with AS/NZS 61439.1:2016 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB Chassis
Brand
IPD
Series
NYBUS
Application
MCCB chassis / busbar system

Electrical

Location of Connection
Single feed, Double sided
No. of Phases
3 phase
Short Circuit Withstand
65kA at 1s
Rated Current (In)
800A
Nominal Voltage
415V
No. of Poles
24P

Dimensions & Physical Data

Depth
87.5mm
Height
523mm
Width
390mm

Environmental

IP Rating
IP2X

Safety, Standards & Compliance

Standards and Approvals
AS/NZS – 61439
