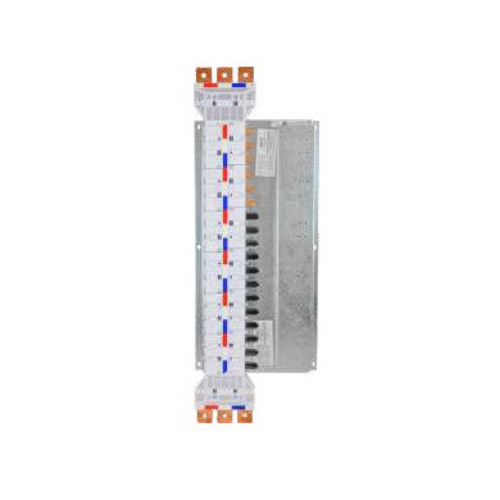

IPD NY80XT1US36 Nybus MCCB Chassis 36-P 800A Universal Single Sided Feed XT1 For: ABB MCCB-XT1

Product Code: NY80XT1US36

  • Supports up to 800 A current
  • Withstands 50 kA short-time current
  • Features 36 poles for versatility
  • Universal single-sided feed type
  • Complies with AS/NZS 61439.1:2016 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB Chassis
Brand
IPD
Series
NYBUS
Application
MCCB chassis / busbar system

Electrical

Location of Connection
Universal feed, Single sided
No. of Phases
3 phase
Short Circuit Withstand
65kA at 1s
Rated Current (In)
800A
Nominal Voltage
415V
No. of Poles
36P

Dimensions & Physical Data

Depth
87.5mm
Height
1202.4mm
Width
390mm

Environmental

IP Rating
IP2X

Safety, Standards & Compliance

Standards and Approvals
AS/NZS – 61439

Documents

IPD Product Catalogue V17
