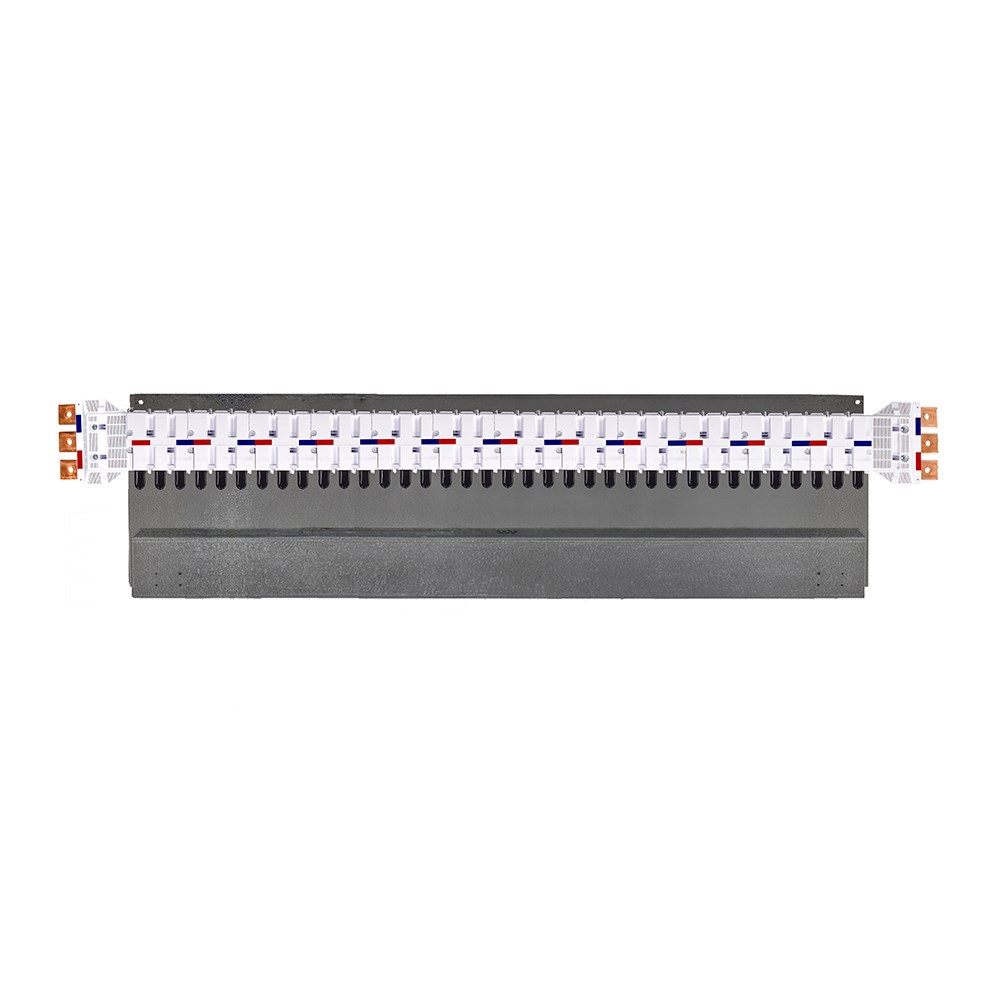

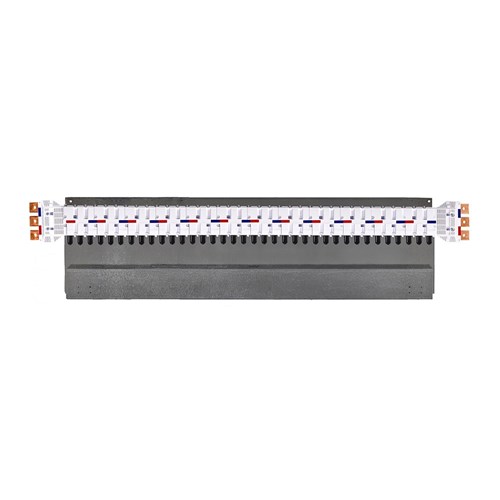

IPD NY80XT1UD36 Nybus MCCB Chassis 36-P 800A Universal Double Sided Feed XT1 For: ABB MCCB-XT1

Product Code: NY80XT1UD36

  • Supports up to 800 A rated current
  • Withstands 50 kA short circuit currents
  • Features 36 poles for versatile use
  • Universal double-sided feed type
  • Complies with AS/NZS 61439.1:2016 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB Chassis
Brand
IPD
Series
NYBUS
Application
MCCB chassis / busbar system

Electrical

Location of Connection
Universal feed, Double sided
No. of Phases
3 phase
Short Circuit Withstand
65 kA at 1s
Rated Current (In)
800 A
Nominal Voltage
415 V
No. of Poles
36P

Dimensions & Physical Data

Depth
87.5 mm
Height
925 mm
Length
134.6 mm
Width
390 mm

Environmental

IP Rating
IP2X

Safety, Standards & Compliance

Standards and Approvals
AS/NZS – 61439

Documents

IPD Product Catalogue V17
