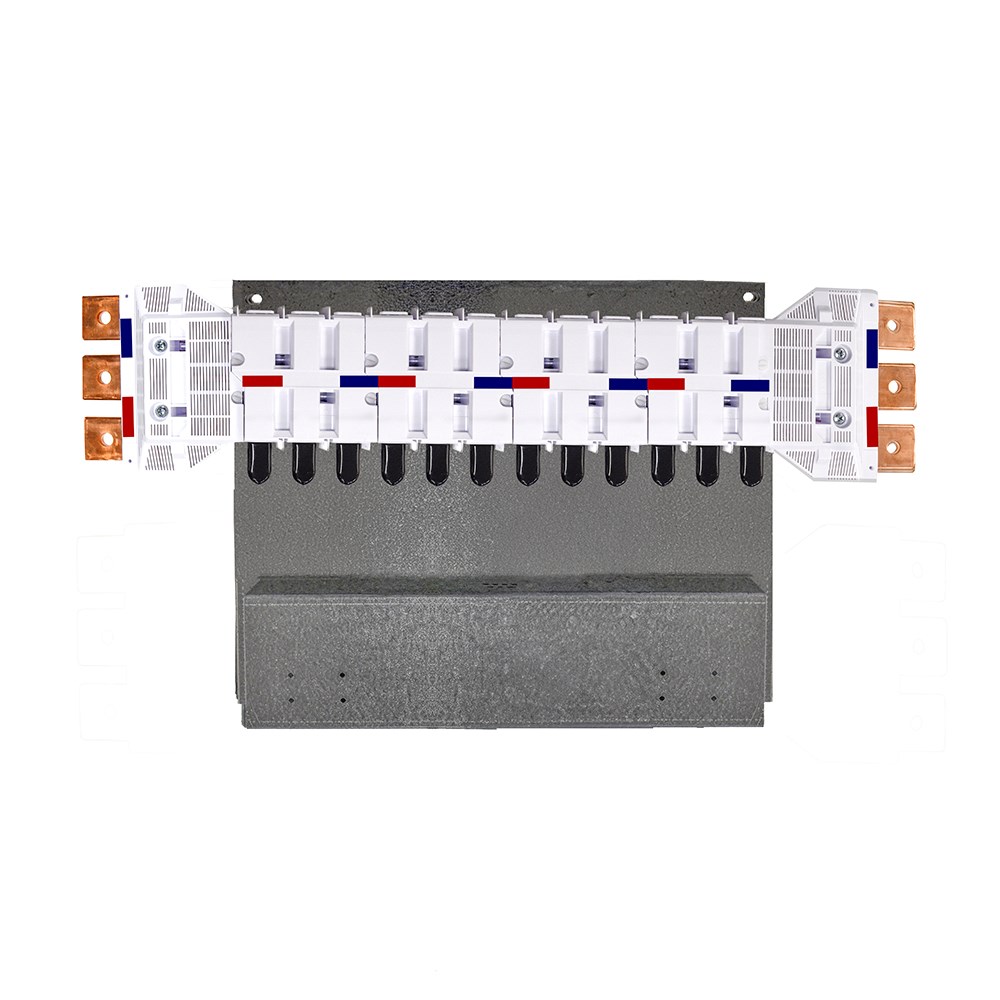

IPD NY80XT1UD12 Nybus MCCB Chassis 12-P 800A Universal Double Sided Feed XT1 For: ABB MCCB-XT1

Product Code: NY80XT1UD12

  • 800 A rated current capacity
  • Withstands 50 kA short circuit
  • Universal double-sided feed
  • Compatible with ABB MCCB-XT1
  • Complies with AS/NZS 61439.1:2016
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB Chassis
Brand
IPD
Series
NYBUS
Application
MCCB chassis / busbar system

Electrical

Location of Connection
Universal feed, Double sided
No. of Phases
3 phase
Short Circuit Withstand
65 kA at 1s
Rated Current (In)
800 A
Nominal Voltage
415 V
No. of Poles
12P

Dimensions & Physical Data

Depth
87.5 mm
Height
544 mm
Length
134.6 mm
Width
390 mm

Environmental

IP Rating
IP2X

Safety, Standards & Compliance

Standards and Approvals
AS/NZS – 61439

Documents

IPD Product Catalogue V17
