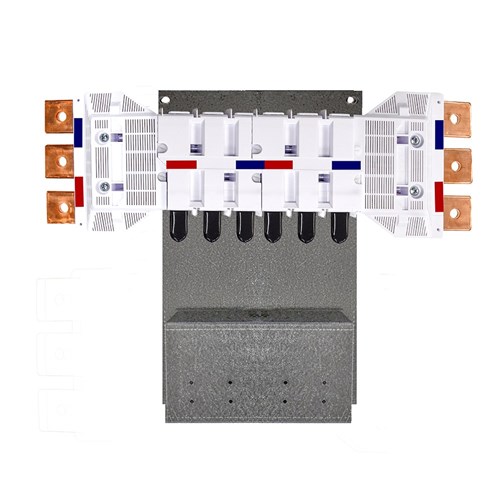

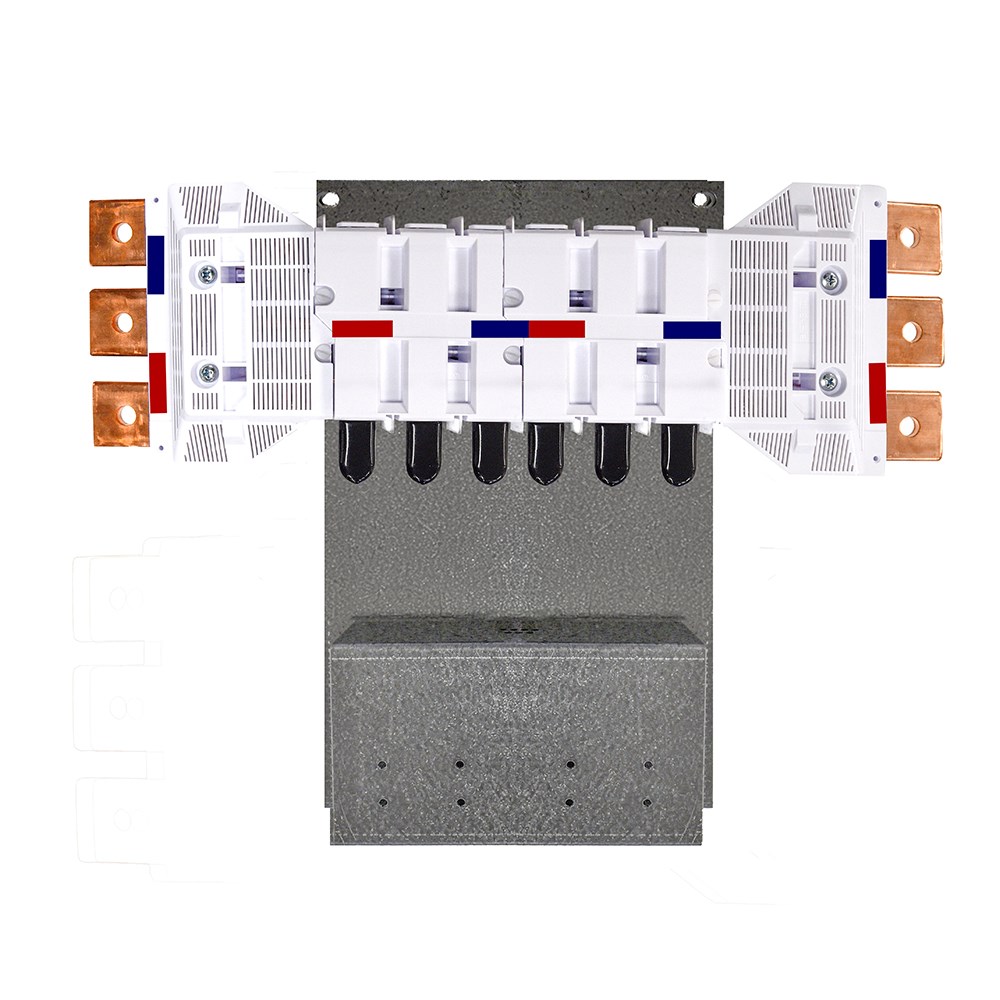

IPD NY80XT1UD06 Nybus MCCB Chassis 6-P 800A Universal Double Sided Feed XT1 For: ABB MCCB-XT1

Product Code: NY80XT1UD06

  • Rated for 800 A current
  • Withstands 50 kA short circuit
  • Universal double-sided feed
  • Compatible with ABB MCCB-XT1
  • Complies with AS/NZS 61439.1:2016
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB Chassis
Brand
IPD
Series
NYBUS
Application
MCCB chassis / busbar system

Electrical

Location of Connection
Universal feed, Double sided
No. of Phases
3 phase
Short Circuit Withstand
65kA at 1s
Rated Current (In)
800A
Nominal Voltage
415V
No. of Poles
6P

Dimensions & Physical Data

Depth
87.5mm
Height
364.2mm
Width
390mm

Environmental

IP Rating
IP2X

Safety, Standards & Compliance

Standards and Approvals
AS/NZS – 61439

Documents

IPD Product Catalogue V17
