Products

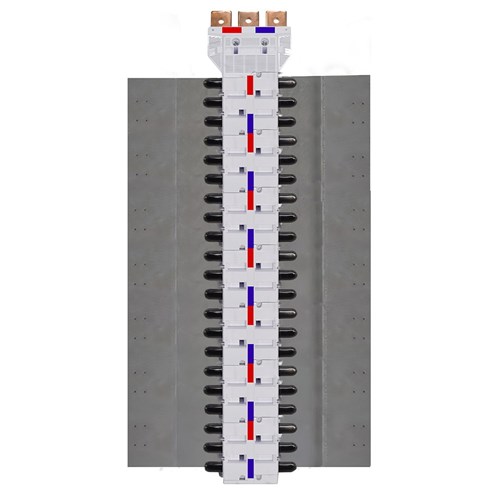

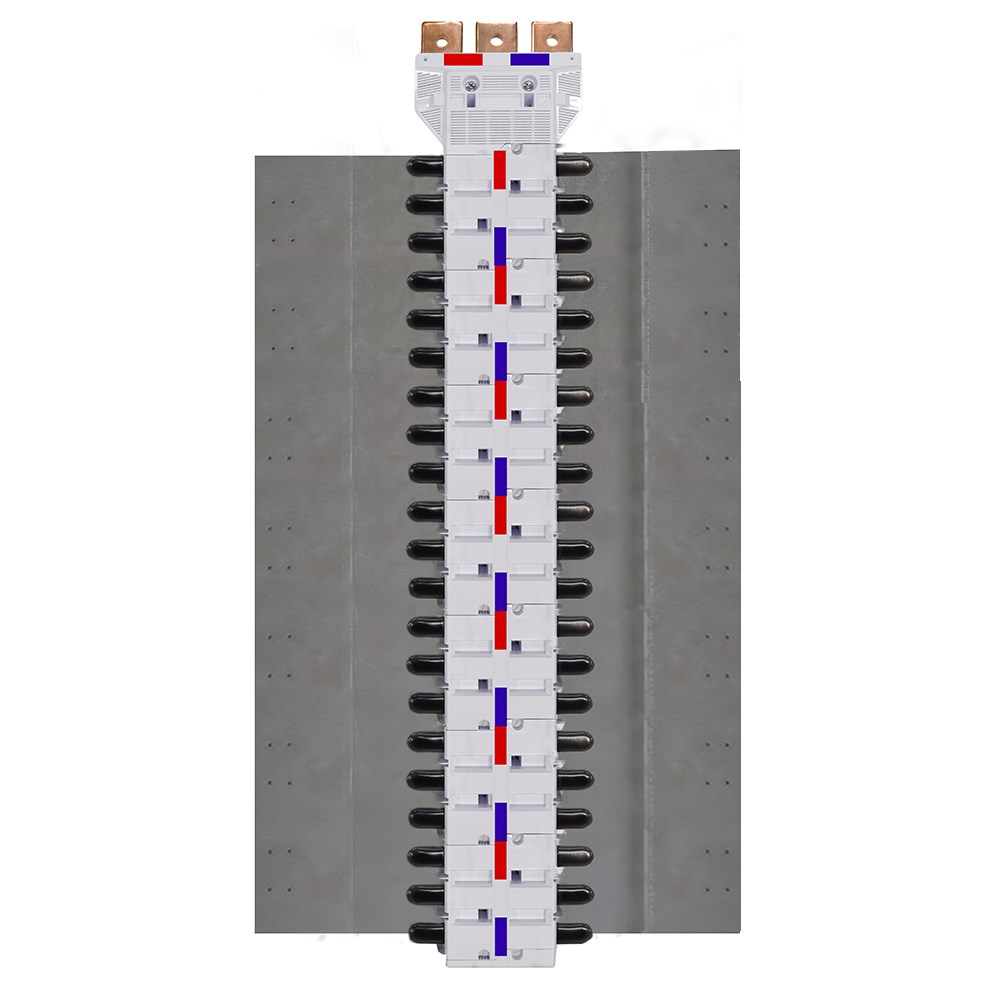

IPD NY80XT1SD42 Nybus MCCB Chassis 42-P 800A Single Feed Double Sided Feed XT1 For: ABB MCCB-XT1

Product Code: NY80XT1SD42

  • Supports up to 800 A current
  • Withstands 50 kA short circuit
  • Designed for 42 poles
  • Single feed, double-sided use
  • Complies with AS/NZS 61439.1:2016 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB Chassis
Brand
IPD
Series
NYBUS
Application
MCCB chassis / busbar system

Electrical

Location of Connection
Single feed, Double sided
No. of Phases
3 phase
Short Circuit Withstand
65kA at 1s
Rated Current (In)
800A
Nominal Voltage
415V
No. of Poles
42P

Dimensions & Physical Data

Depth
87.5mm
Height
696.4mm
Width
390mm

Environmental

IP Rating
IP2X

Safety, Standards & Compliance

Standards and Approvals
AS/NZS – 61439

Documents

IPD Product Catalogue V17
