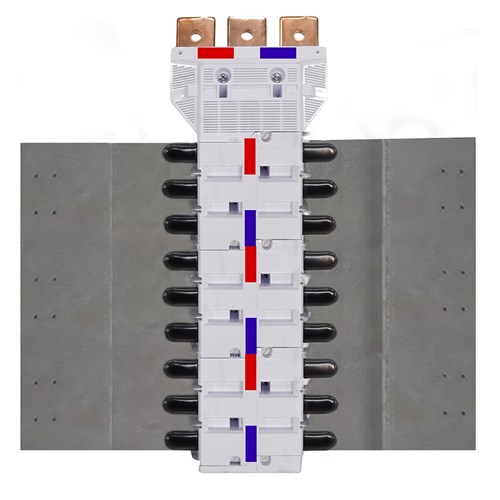

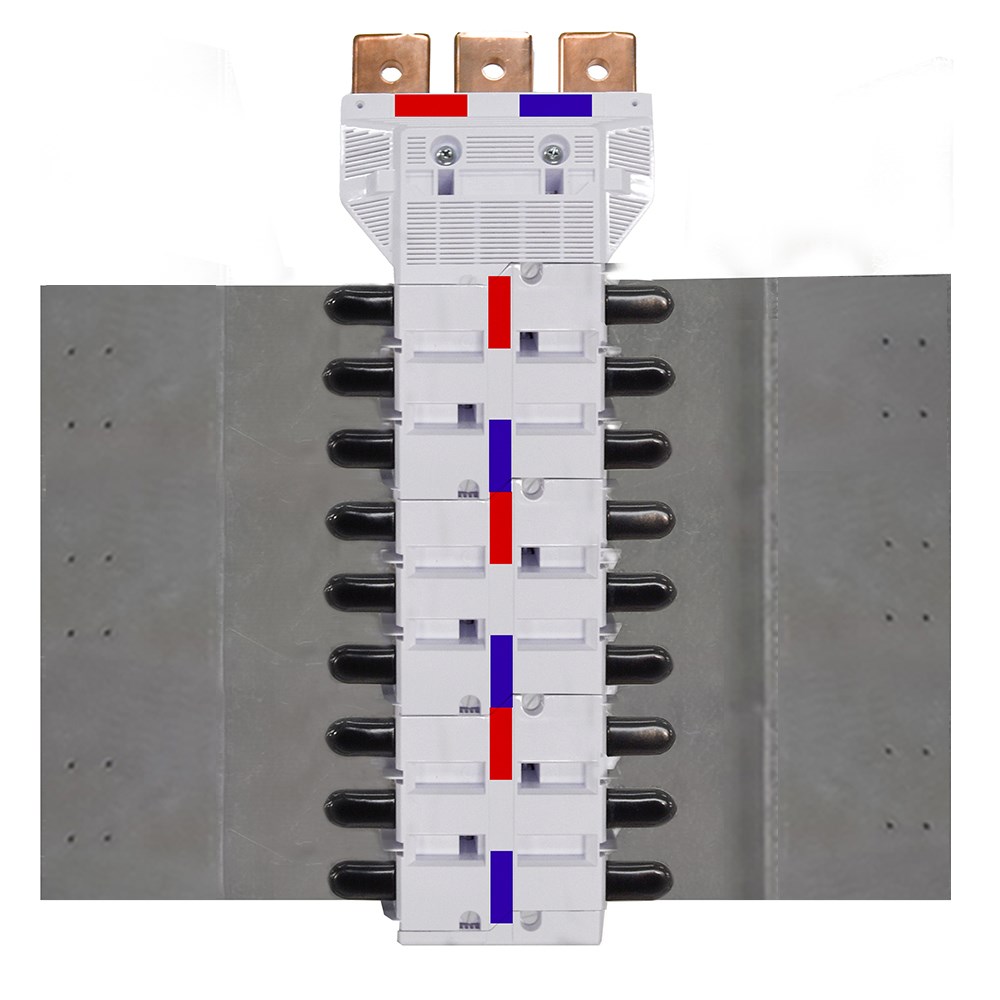

IPD NY80XT1SD18 Nybus MCCB Chassis 18-P 800A Single Feed Double Sided Feed XT1 For: ABB MCCB-XT1

Product Code: NY80XT1SD18

  • Nybus Chassis with 800 A rated current
  • Withstands short time current of 50 kA
  • Equipped with 18 poles for flexibility
  • Bulbar cross section: 8 x 40 sq-mm
  • Compliant with AS/NZS 61439.1:2016 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB Chassis
Brand
IPD
Series
NYBUS
Application
MCCB chassis / busbar system

Electrical

Location of Connection
Single feed, Double sided
No. of Phases
3 phase
Short Circuit Withstand
65kA at 1s
Rated Current (In)
800A
Nominal Voltage
415V
No. of Poles
18P

Dimensions & Physical Data

Depth
87.5mm
Height
391.6mm
Width
390mm

Environmental

IP Rating
IP2X

Safety, Standards & Compliance

Standards and Approvals
AS/NZS – 61439

Documents

IPD Product Catalogue V17
