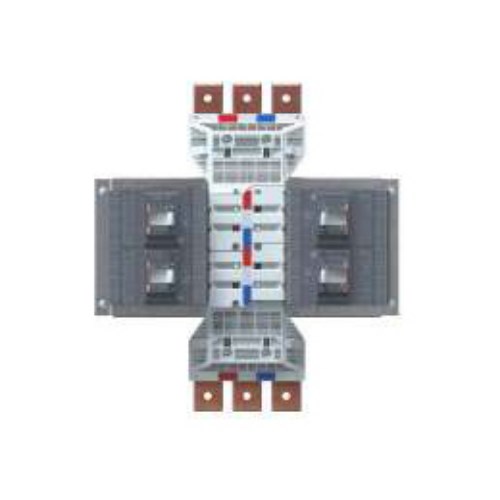

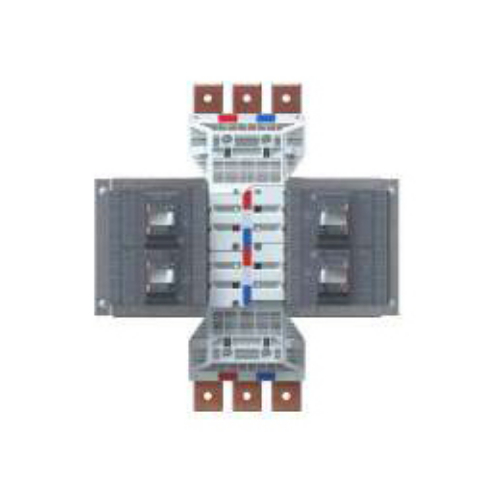

IPD NY80XT1SD06 Nybus MCCB Chassis 6-P 800A Single Feed Double Sided Feed XT1 For: ABB MCCB-XT1

Product Code: NY80XT1SD06

  • Rated current of 800 A for robust performance
  • Handles short-time currents up to 50 kA
  • Features 6 poles for versatile applications
  • Single feed double-sided configuration
  • Complies with AS/NZS 61439.1:2016 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB Chassis
Brand
IPD
Series
NYBUS
Application
MCCB chassis / busbar system

Electrical

Location of Connection
Single feed, Double sided
No. of Phases
3 phase
Short Circuit Withstand
65kA at 1s
Rated Current (In)
800A
Nominal Voltage
415V
No. of Poles
6P

Dimensions & Physical Data

Depth
87.5mm
Height
239.2mm
Width
390mm

Environmental

IP Rating
IP2X

Safety, Standards & Compliance

Standards and Approvals
AS/NZS – 61439

Documents

IPD Product Catalogue V17
