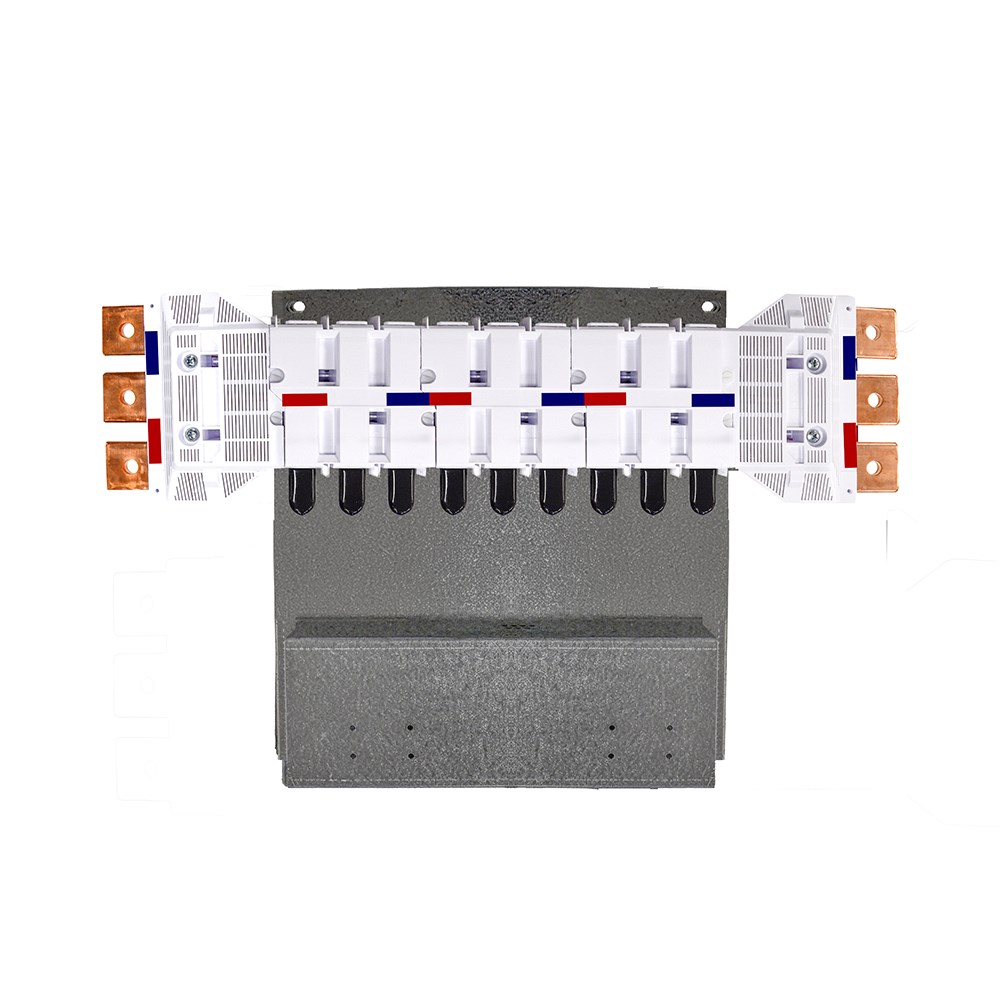

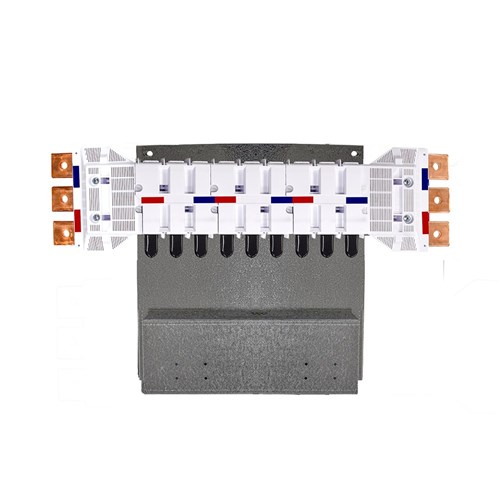

IPD NY63XT4US09 Nybus MCCB Chassis 9-P 630A Universal Single Sided Feed XT4 For: ABB MCCB-XT3 ABB MCCB-XT4

Product Code: NY63XT4US09

  • Rated for 630 A current capacity
  • Handles frequencies of 50/60 Hz
  • Withstands short time currents up to 36 kA
  • Compatible with ABB MCCB-XT3, XT4
  • Complies with AS/NZS 61439.1:2016 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB Chassis
Brand
IPD
Application
Use with ABB MCCB-XT4

Electrical

Busbar Pitch
35 mm
No. of Phases
3-phase
Rated Current (In)
630 A
Rated Short Time Withstand Current (Icw)
36 kA
Nominal Voltage
~690 V AC (based on MCCB rating)
No. of Poles
9P

Environmental

IP Rating
IP2X

Safety, Standards & Compliance

Standards and Approvals
AS/NZS 61439.1:2016

Documents

IPD Product Catalogue V17
