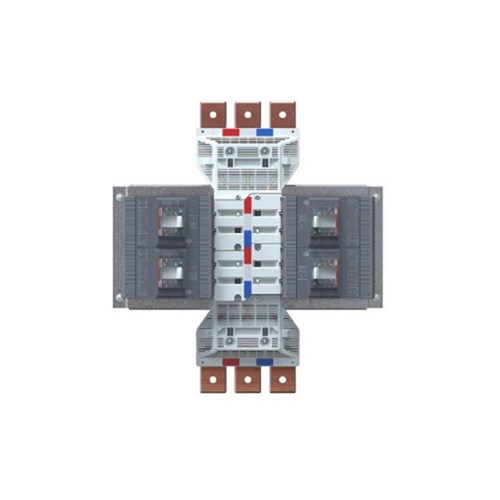

IPD NY63XT4UD48 Nybus MCCB Chassis 48-P 630A Universal Double Sided Feed XT4 For: ABB MCCB-XT3 ABB MCCB-XT4

Product Code: NY63XT4UD48

  • Rated current capacity of 630 A
  • Short time withstand current: 36 kA
  • Features 48 poles for diverse applications
  • Universal double-sided feed type
  • Compatible with ABB MCCB-XT3, XT4
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB Chassis
Brand
IPD
Series
NYBUS
Application
MCCB chassis / busbar system

Electrical

Location of Connection
Universal feed, Double sided
No. of Phases
3 phase
Short Circuit Withstand
65kA at 1s
Rated Current (In)
630A
Nominal Voltage
415V
No. of Poles
48P

Dimensions & Physical Data

Depth
87.5mm
Height
1128mm
Width
390mm

Environmental

IP Rating
IP2X

Safety, Standards & Compliance

Standards and Approvals
AS/NZS – 61439
