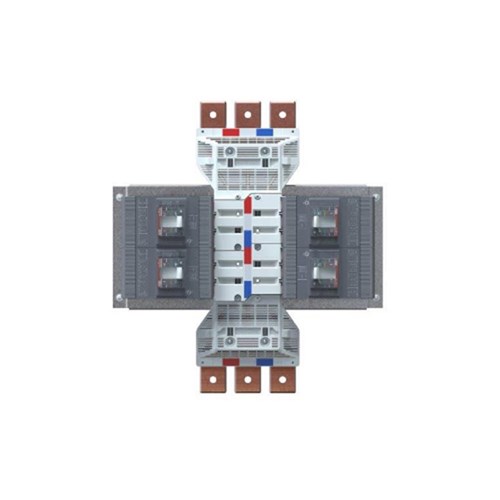

IPD NY63XT4UD24 Nybus MCCB Chassis 24-P 630A Universal Double Sided Feed XT4 For: ABB MCCB-XT3 ABB MCCB-XT4

Product Code: NY63XT4UD24

  • Rated current: 630 A
  • Short time withstand: 36 kA
  • 24 poles for versatile use
  • Universal double-sided feed
  • Complies with AS/NZS 61439.1:2016
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB Chassis
Brand
IPD
Series
NYBUS
Application
MCCB chassis / busbar system

Electrical

Location of Connection
Universal feed, Double sided
No. of Phases
3 phase
Short Circuit Withstand
65kA at 1s
Rated Current (In)
630A
Nominal Voltage
415V
No. of Poles
24P

Dimensions & Physical Data

Depth
87.5mm
Height
708mm
Width
390mm

Environmental

IP Rating
IP2X

Safety, Standards & Compliance

Standards and Approvals
AS/NZS – 61439

Documents

IPD Product Catalogue V17
