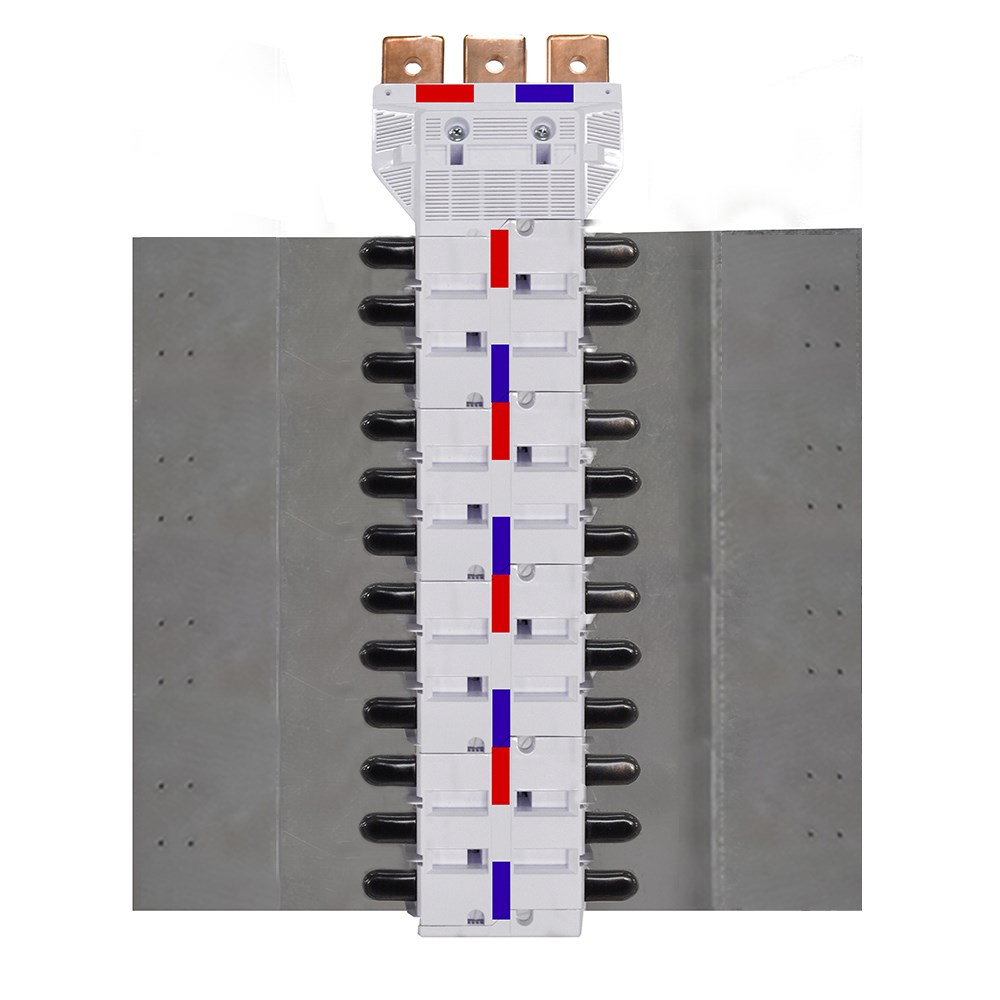

IPD NY63XT4SD24 Nybus MCCB Chassis 24-P 630A Single Feed Double Sided Feed XT4 For: ABB MCCB-XT3 ABB MCCB-XT4

Product Code: NY63XT4SD24

  • Rated current capacity of 630 A
  • Withstands short time currents up to 36 kA
  • Designed with 24 poles for flexibility
  • Single feed, double-sided configuration
  • Complies with AS/NZS 61439.1:2016 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB Chassis
Brand
IPD
Application
Use with ABB MCCB-XT4

Electrical

Busbar Pitch
35 mm
No. of Phases
3-phase
Rated Current (In)
630 A
Rated Short Time Withstand Current (Icw)
36 kA
Nominal Voltage
~690 V AC (based on MCCB rating)
No. of Poles
24P

Environmental

IP Rating
IP2X

Safety, Standards & Compliance

Standards and Approvals
AS/NZS 61439.1:2016

Documents

IPD Product Catalogue V17
