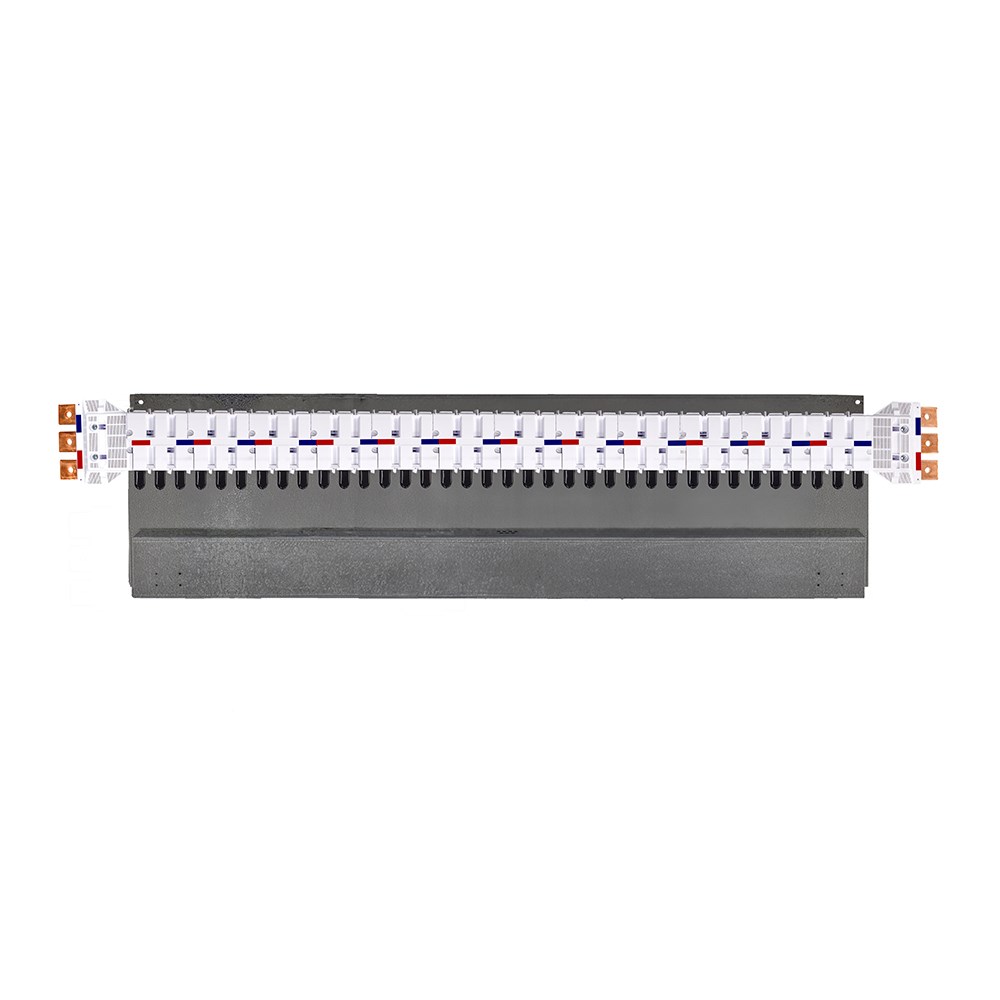

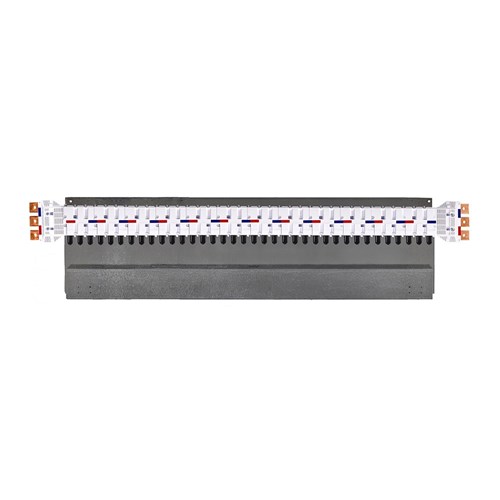

IPD NY63XT2US364P Nybus MCCB Chassis 36-P 630A Universal Single Sided Feed XT2 30mm Pitch

Product Code: NY63XT2US364P

  • Supports 630 A current capacity
  • Handles frequencies of 50/60 Hz
  • Withstands short time current of 36 kA
  • Features NRWB pole configuration
  • Complies with AS/NZS 61439.1.2016 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB Chassis
Brand
IPD
Series
NYBUS
Application
MCCB chassis / busbar system

Electrical

Location of Connection
Universal feed, Single sided
No. of Phases
3 phase
Short Circuit Withstand
65kA at 1s
Rated Current (In)
630A
Nominal Voltage
415V
No. of Poles
36P

Dimensions & Physical Data

Depth
87.5mm
Height
1368mm
Width
390mm

Environmental

IP Rating
IP2X

Safety, Standards & Compliance

Standards and Approvals
AS/NZS – 61439

Documents

IPD Product Catalogue V17
