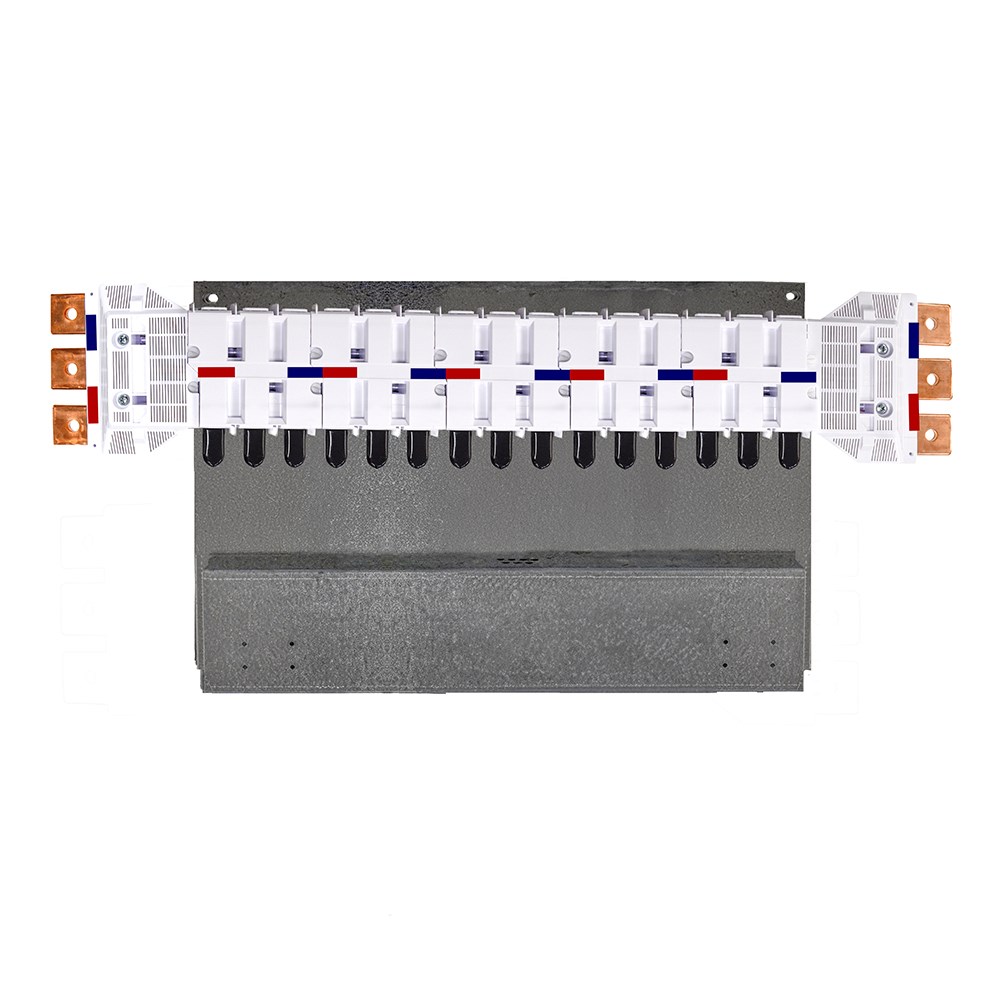

IPD NY63XT2US15 Nybus MCCB Chassis 15-P 630A Universal Single Sided Feed XT2 For: ABB MCCB-XT2

Product Code: NY63XT2US15

  • Rated for 630A current handling
  • Supports 50/60 Hz frequency
  • Withstands 36 kA short circuit current
  • Features 15 poles for versatile use
  • Compatible with ABB MCCB-XT2
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB Chassis
Brand
IPD
Series
NYBUS
Application
MCCB chassis / busbar system

Electrical

Location of Connection
Universal feed, Single sided
No. of Phases
3 phase
Short Circuit Withstand
65kA at 1s
Rated Current (In)
630A
Nominal Voltage
415V
No. of Poles
15P

Dimensions & Physical Data

Depth
87.5mm
Height
738mm
Width
390mm

Environmental

IP Rating
IP2X

Safety, Standards & Compliance

Standards and Approvals
AS/NZS – 61439
