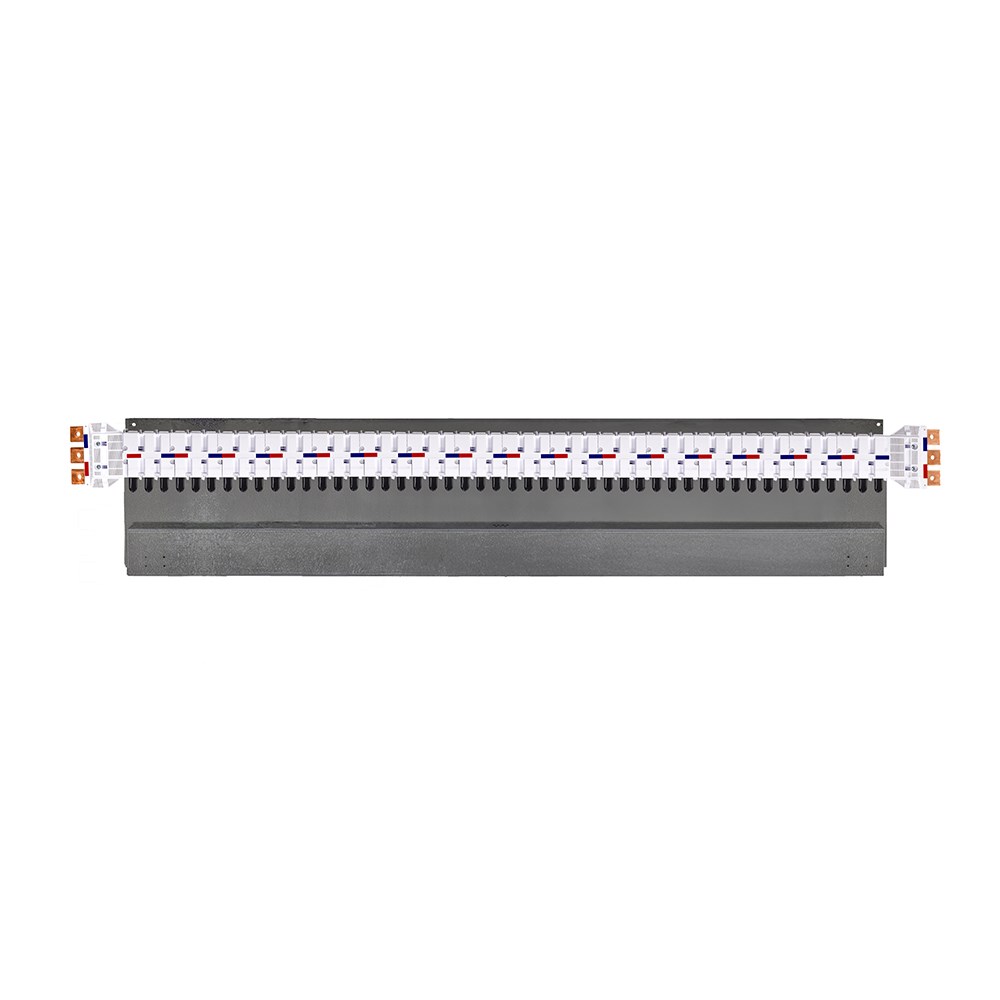

IPD NY63XT2UD48 Nybus MCCB Chassis 48-P 630A Universal Double Sided Feed XT2 For: ABB MCCB-XT2

Product Code: NY63XT2UD48

  • Nybus Chassis with 630 A rated current
  • Withstands short circuit up to 36 kA
  • Features 48 poles for versatile use
  • Universal double-sided feed type
  • Complies with AS/NZS 61439.1:2016 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB Chassis
Brand
IPD
Series
NYBUS
Application
MCCB chassis / busbar system

Electrical

Location of Connection
Universal feed, Double sided
No. of Phases
3 phase
Short Circuit Withstand
65kA at 1s
Rated Current (In)
630A
Nominal Voltage
415V
No. of Poles
48P

Dimensions & Physical Data

Depth
87.5mm
Height
1008mm
Width
390mm

Environmental

IP Rating
IP2X

Safety, Standards & Compliance

Standards and Approvals
AS/NZS – 61439

Documents

IPD Product Catalogue V17
