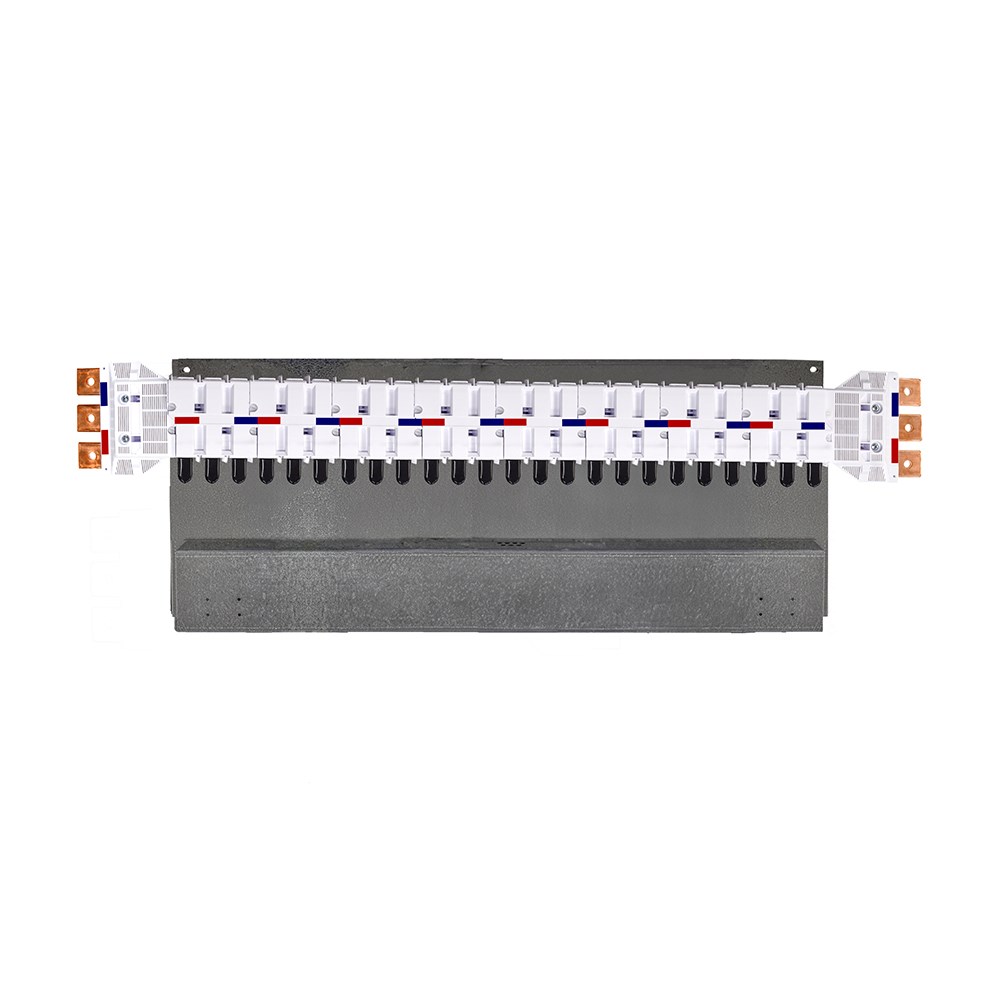

IPD NY63XT2SR24 Nybus MCCB Chassis 24-P 630A Right Top Left Bottom Feed XT2 For: ABB MCCB-XT2

Product Code: NY63XT2SR24

  • Rated current of 630 A for robust performance
  • Withstands short-time currents up to 36 kA
  • Accommodates 24 poles for versatile applications
  • Bulbar cross section: 6.4 x 40 sq-mm
  • Compatible with ABB MCCB-XT2
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB Chassis
Brand
IPD
Application
Use with ABB MCCB-XT2

Electrical

Busbar Pitch
30 mm
No. of Phases
3-phase
Rated Short Time Withstand Current (Icw)
36000A
Rated Current (In)
630A
Nominal Voltage
~690V AC (based on MCCB rating)
No. of Poles
24P

Environmental

IP Rating
IP2X

Safety, Standards & Compliance

Standards and Approvals
AS/NZS 61439.1:2016
