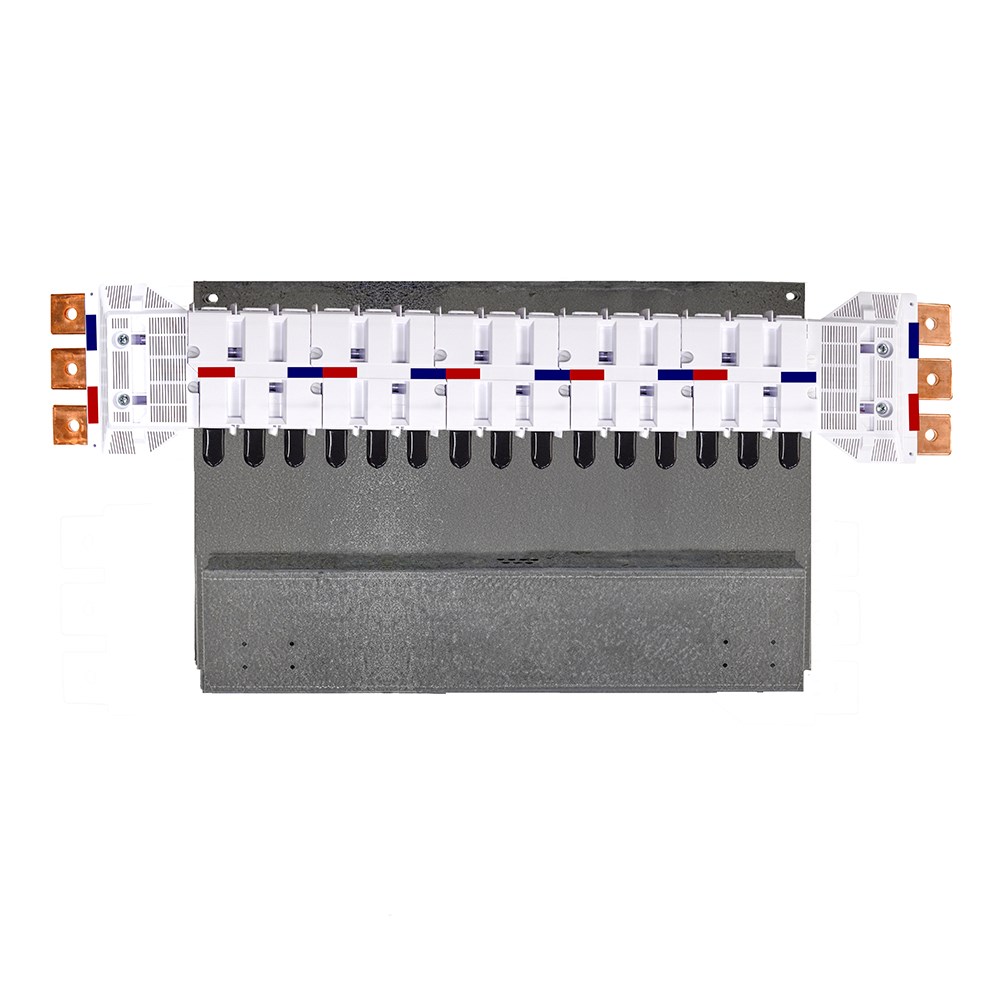

IPD NY63XT2SR15 Nybus MCCB Chassis 15-P 630A Right Top Left Bottom Feed XT2 For: ABB MCCB-XT2

Product Code: NY63XT2SR15

  • Rated for 630 A current
  • Withstands 36 kA short-time current
  • 15 poles for versatile use
  • Bulbar size: 6.4 x 40 sq-mm
  • Compatible with ABB MCCB-XT2
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB Chassis
Brand
IPD
Application
Use with ABB MCCB-XT2

Electrical

Busbar Pitch
30 mm
No. of Phases
3-phase
Rated Short Time Withstand Current (Icw)
36000A
Rated Current (In)
630A
Nominal Voltage
~690V AC (based on MCCB rating)
No. of Poles
15P

Environmental

IP Rating
IP2X

Safety, Standards & Compliance

Standards and Approvals
AS/NZS 61439.1:2016

Documents

IPD Product Catalogue V17
