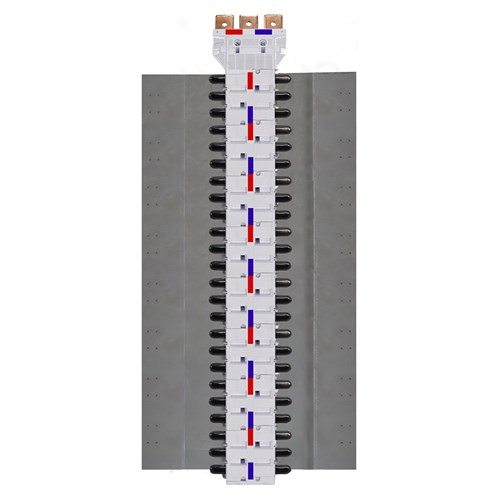

IPD NY63XT2SD48 Nybus MCCB Chassis 48-P 630A Single Feed Double Sided Feed XT2 For: ABB MCCB-XT2

Product Code: NY63XT2SD48

  • Handles up to 630 A current
  • Withstands 36 kA short circuit
  • Supports 48 poles
  • Single feed, double-sided design
  • Compatible with ABB MCCB-XT2
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB Chassis
Brand
IPD
Series
NYBUS
Application
MCCB chassis / busbar system

Electrical

Location of Connection
Single feed, Double sided
No. of Phases
3 phase
Short Circuit Withstand
65kA at 1s
Rated Current (In)
630A
Nominal Voltage
415V
No. of Poles
48P

Dimensions & Physical Data

Depth
87.5mm
Height
883mm
Width
390mm

Environmental

IP Rating
IP2X

Safety, Standards & Compliance

Standards and Approvals
AS/NZS – 61439

Documents

IPD Product Catalogue V17
