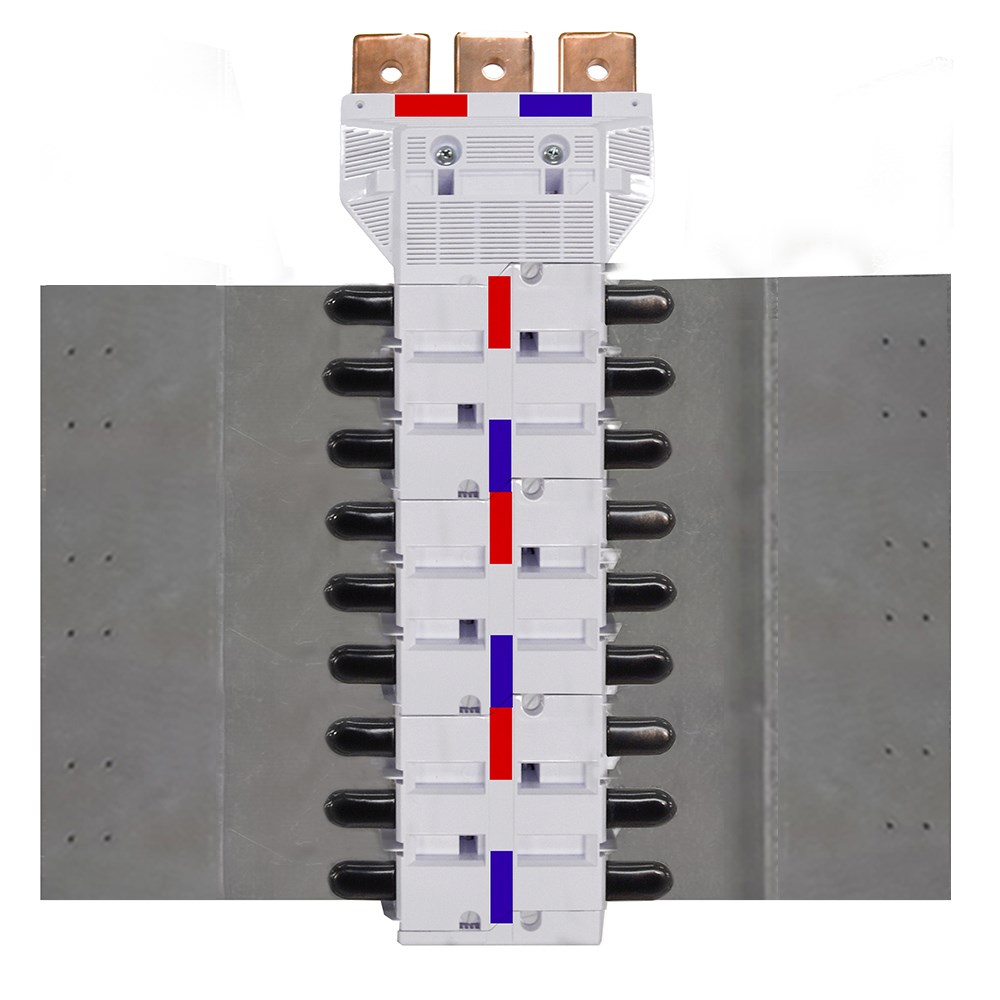

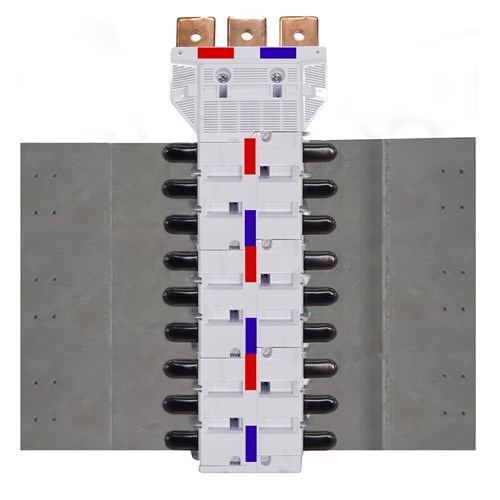

IPD NY63XT2SD18 Nybus MCCB Chassis 18-P 630A Single Feed Double Sided Feed XT2 For: ABB MCCB-XT2

Product Code: NY63XT2SD18

  • Supports up to 630A current
  • Withstands 36kA short-time current
  • Features 18 poles for flexibility
  • Single feed, double-sided design
  • Compatible with ABB MCCB-XT2
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB Chassis
Brand
IPD
Application
Use with ABB MCCB-XT2

Electrical

Busbar Pitch
30 mm
No. of Phases
3-phase
Rated Current (In)
630 A
Rated Short Time Withstand Current (Icw)
36 kA
Nominal Voltage
~690 V AC (based on MCCB rating)
No. of Poles
18P

Environmental

IP Rating
IP2X

Safety, Standards & Compliance

Standards and Approvals
AS/NZS 61439.1:2016

Documents

IPD Product Catalogue V17
