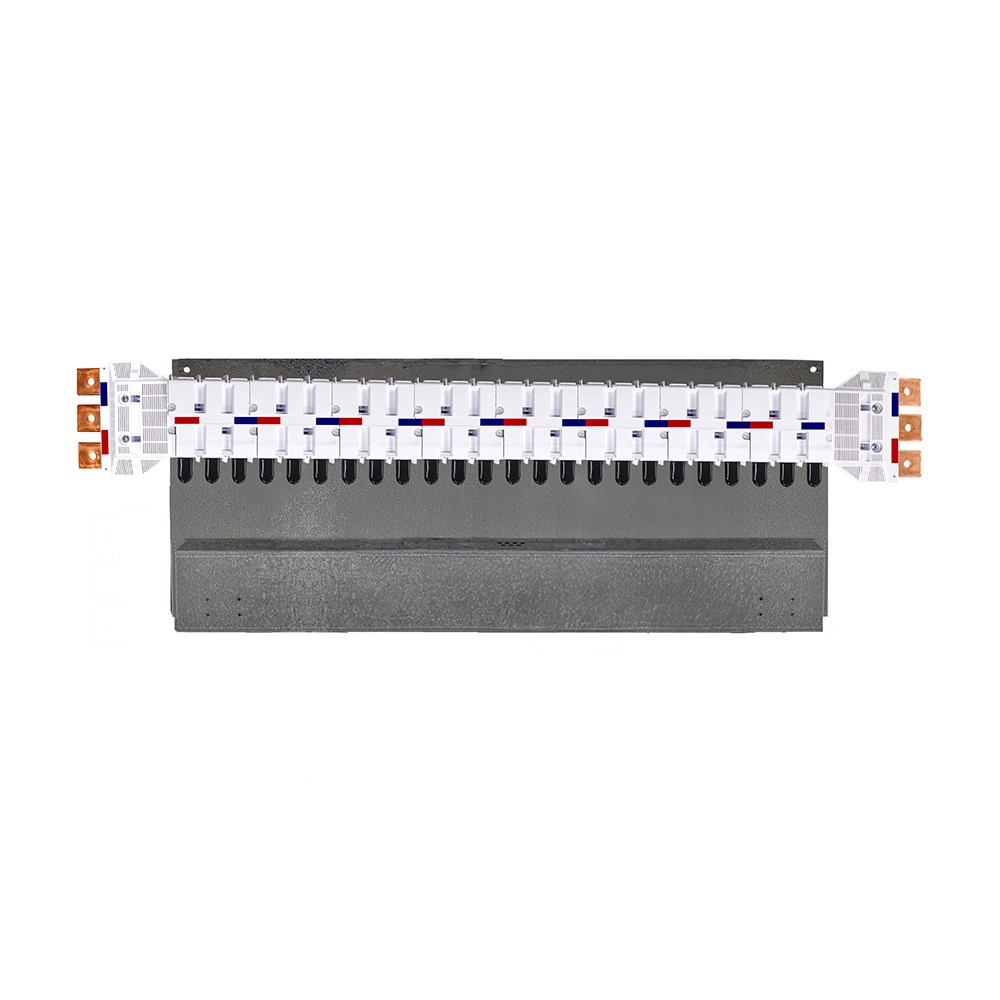

IPD NY63XT1US24 Nybus MCCB Chassis 24-P 630A Universal Single Sided Feed XT1 For: ABB MCCB-XT1

Product Code: NY63XT1US24

  • Rated for 630 A current
  • Withstands 36 kA short time
  • 24 pole configuration
  • Universal single-sided feed
  • Complies with AS/NZS 61439.1:2016
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB Chassis
Brand
IPD
Series
NYBUS
Application
MCCB chassis / busbar system

Electrical

Location of Connection
Universal feed, Single sided
No. of Phases
3 phase
Short Circuit Withstand
65kA at 1s
Rated Current (In)
630A
Nominal Voltage
415V
No. of Poles
24P

Dimensions & Physical Data

Depth
87.5mm
Height
897.6mm
Width
390mm

Environmental

IP Rating
IP2X

Safety, Standards & Compliance

Standards and Approvals
AS/NZS – 61439
