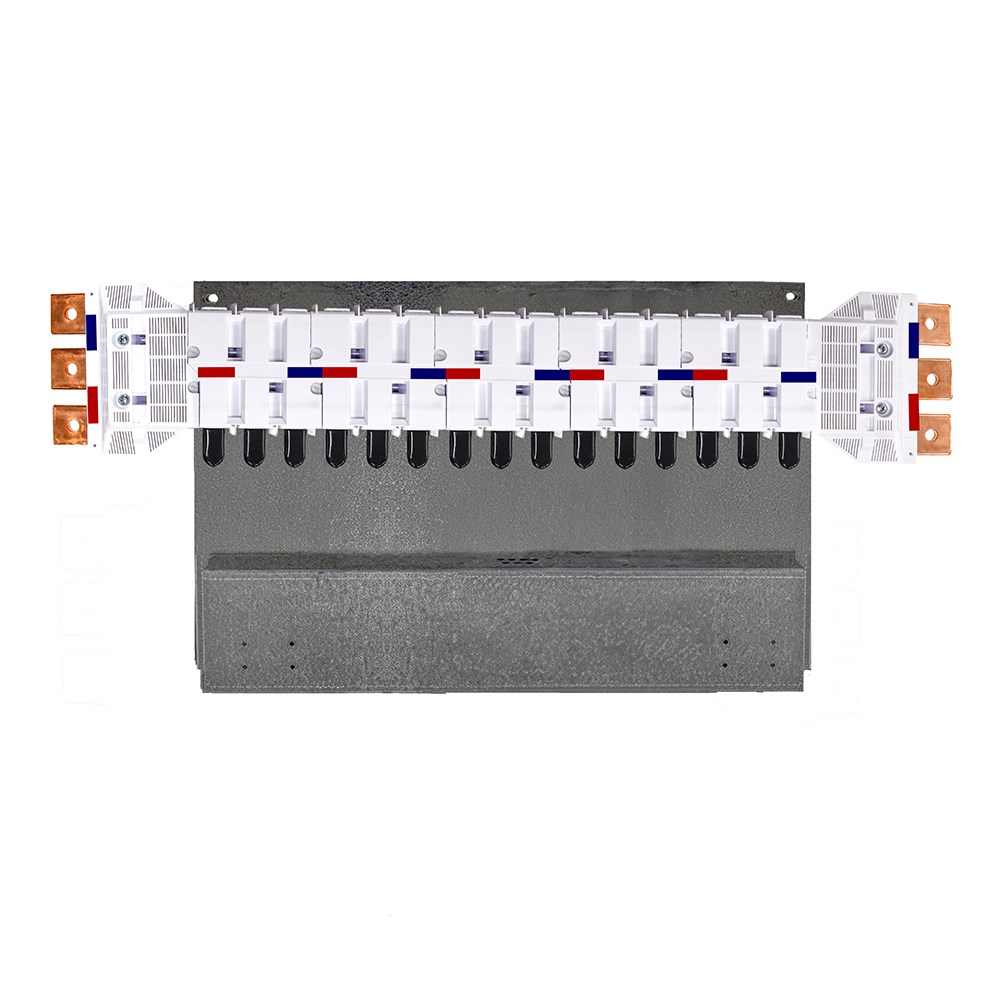

IPD NY63XT1US15 Nybus MCCB Chassis 15-P 630A Universal Single Sided Feed XT1 For: ABB MCCB-XT1

Product Code: NY63XT1US15

  • Nybus Chassis with 630 A rated current.
  • Operates at 50/60 Hz frequency.
  • Withstands short circuit up to 36 kA.
  • Compatible with ABB MCCB-XT1.
  • Complies with AS/NZS 61439.1:2016 standards.
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB Chassis
Brand
IPD
Application
Use with ABB MCCB-XT1

Electrical

Busbar Pitch
25 mm
No. of Phases
3-phase
Rated Short Time Withstand Current (Icw)
36000A
Rated Current (In)
630A
Nominal Voltage
~690V AC (based on MCCB rating)
No. of Poles
15P

Environmental

IP Rating
IP2X

Safety, Standards & Compliance

Standards and Approvals
AS/NZS 61439.1:2016

Documents

IPD Product Catalogue V17
