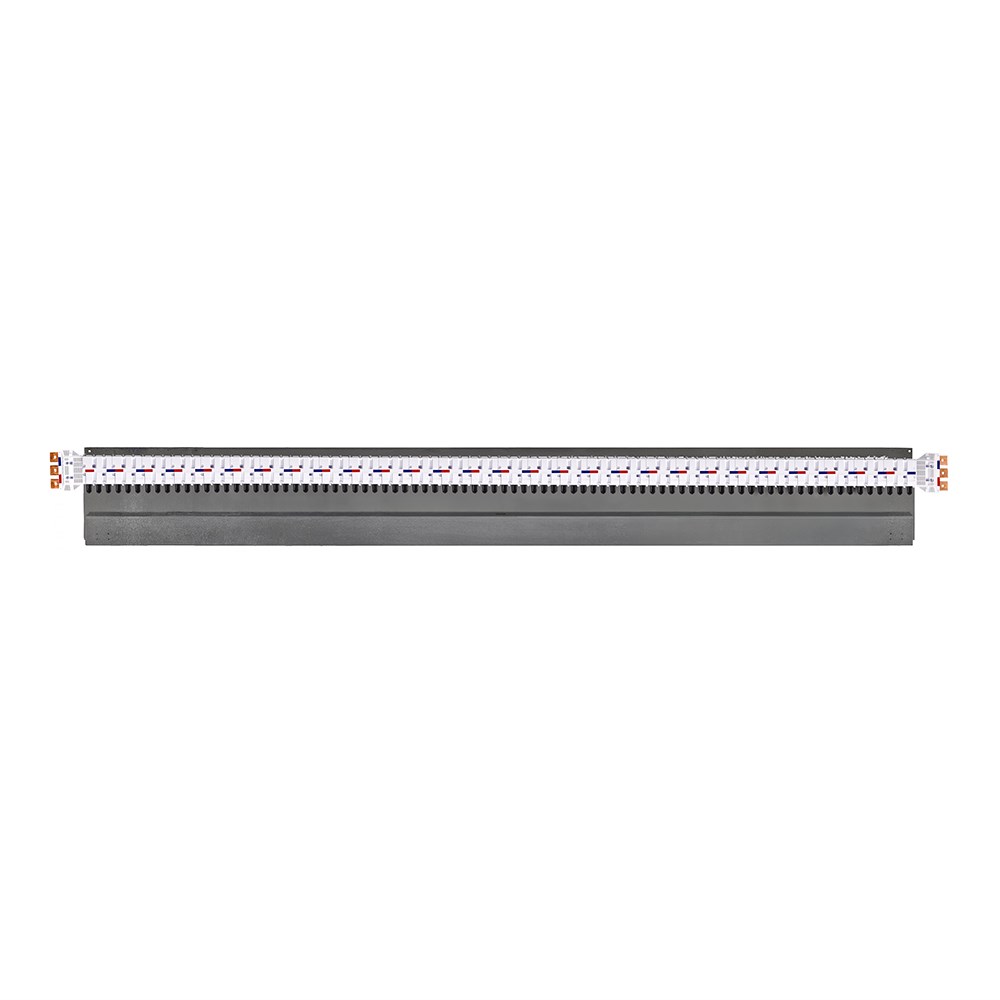

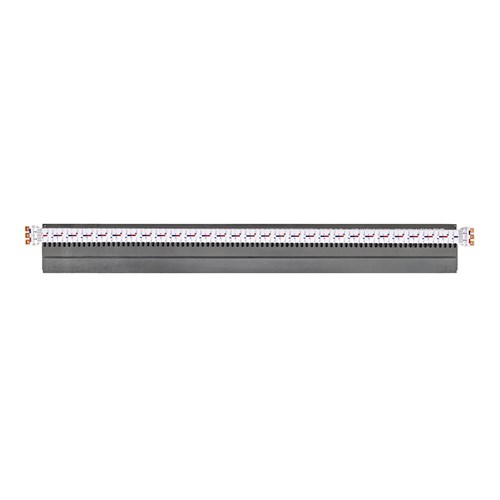

IPD NY63XT1UD72 Nybus MCCB Chassis 72-P 630A Universal Double Sided Feed XT1 For: ABB MCCB-XT1

Product Code: NY63XT1UD72

  • Rated current: 630 A
  • Short time withstand: 36 kA
  • 72 poles for extensive connectivity
  • Universal double-sided feed type
  • Complies with AS/NZS 61439.1:2016
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB Chassis
Brand
IPD
Series
NYBUS
Application
MCCB chassis / busbar system

Electrical

Location of Connection
Universal feed, Double sided
No. of Phases
3 phase
Short Circuit Withstand
65 kA at 1s
Rated Current (In)
630 A
Nominal Voltage
415 V
No. of Poles
72P

Dimensions & Physical Data

Depth
87.5 mm
Height
440.4 mm
Length
134.6 mm
Width
390 mm

Environmental

IP Rating
IP2X

Safety, Standards & Compliance

Standards and Approvals
AS/NZS – 61439

Documents

IPD Product Catalogue V17
