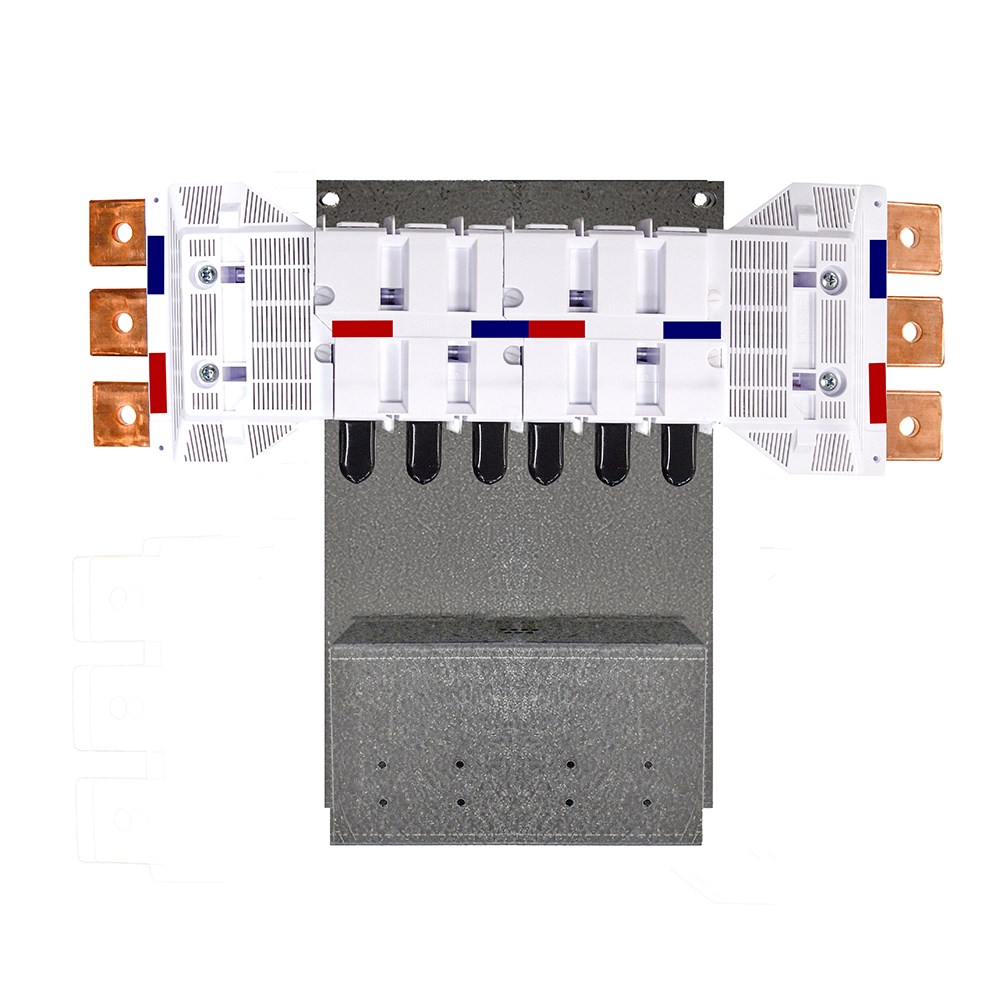

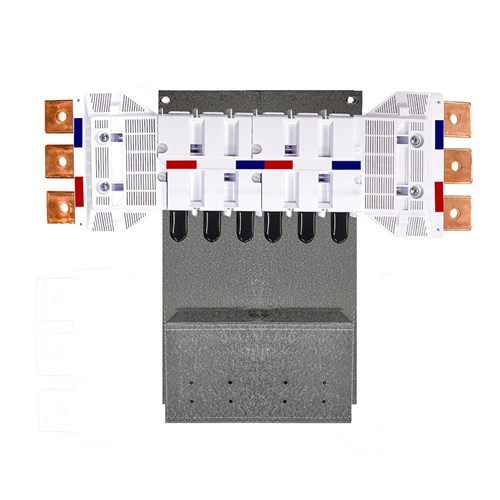

IPD NY63XT1SR06 Nybus MCCB Chassis 6-P 630A Right Top Left Bottom Feed XT1 For: ABB MCCB-XT1

Product Code: NY63XT1SR06

  • Rated current of 630 A
  • Withstands 36 kA short time current
  • 6 pole configuration
  • Bulbar cross section: 6.4 x 40 sq-mm
  • Compatible with ABB MCCB-XT1
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB Chassis
Brand
IPD
Application
Use with ABB MCCB-XT1

Electrical

Busbar Pitch
25 mm
Location of Connection
Top Right / Bottom Left
No. of Phases
3-phase
Rated Current (In)
630 A
Rated Short Time Withstand Current (Icw)
36 kA
Nominal Voltage
~690 V AC (based on MCCB rating)
No. of Poles
6P

Environmental

IP Rating
IP2X

Safety, Standards & Compliance

Standards and Approvals
AS/NZS 61439.1:2016

Documents

IPD Product Catalogue V17
