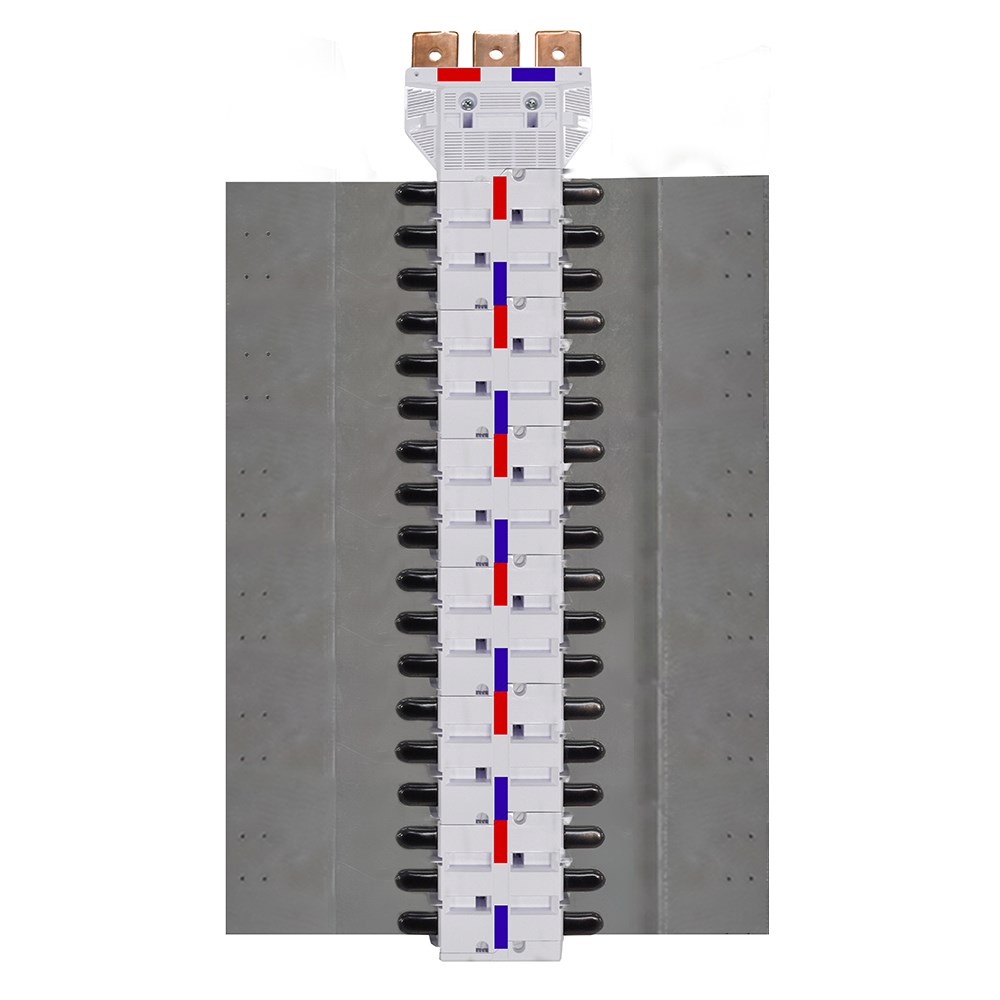

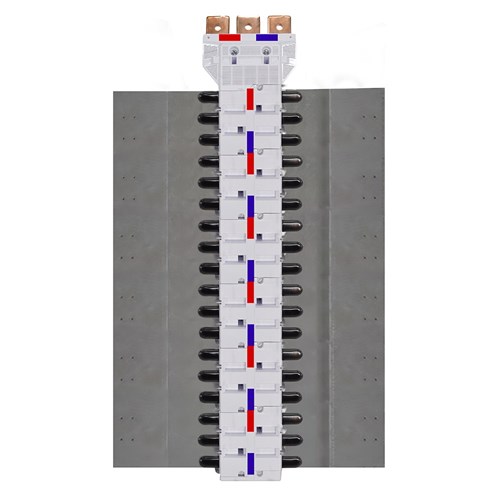

IPD NY63XT1SD36 Nybus MCCB Chassis 36-P 630A Single Feed Double Sided Feed XT1 For: ABB MCCB-XT1

Product Code: NY63XT1SD36

  • Rated for 630 A current handling
  • Withstands short time current of 36 kA
  • Features 36 poles for versatile use
  • Single feed double-sided design
  • Complies with AS/NZS 61439.1:2016 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB Chassis
Brand
IPD
Series
NYBUS
Application
MCCB chassis / busbar system

Electrical

Location of Connection
Single feed, Double sided
No. of Phases
3 phase
Short Circuit Withstand
65kA at 1s
Rated Current (In)
630A
Nominal Voltage
415V
No. of Poles
36P

Dimensions & Physical Data

Depth
87.5mm
Height
620.2mm
Width
390mm

Environmental

IP Rating
IP2X

Safety, Standards & Compliance

Standards and Approvals
AS/NZS – 61439

Documents

IPD Product Catalogue V17
