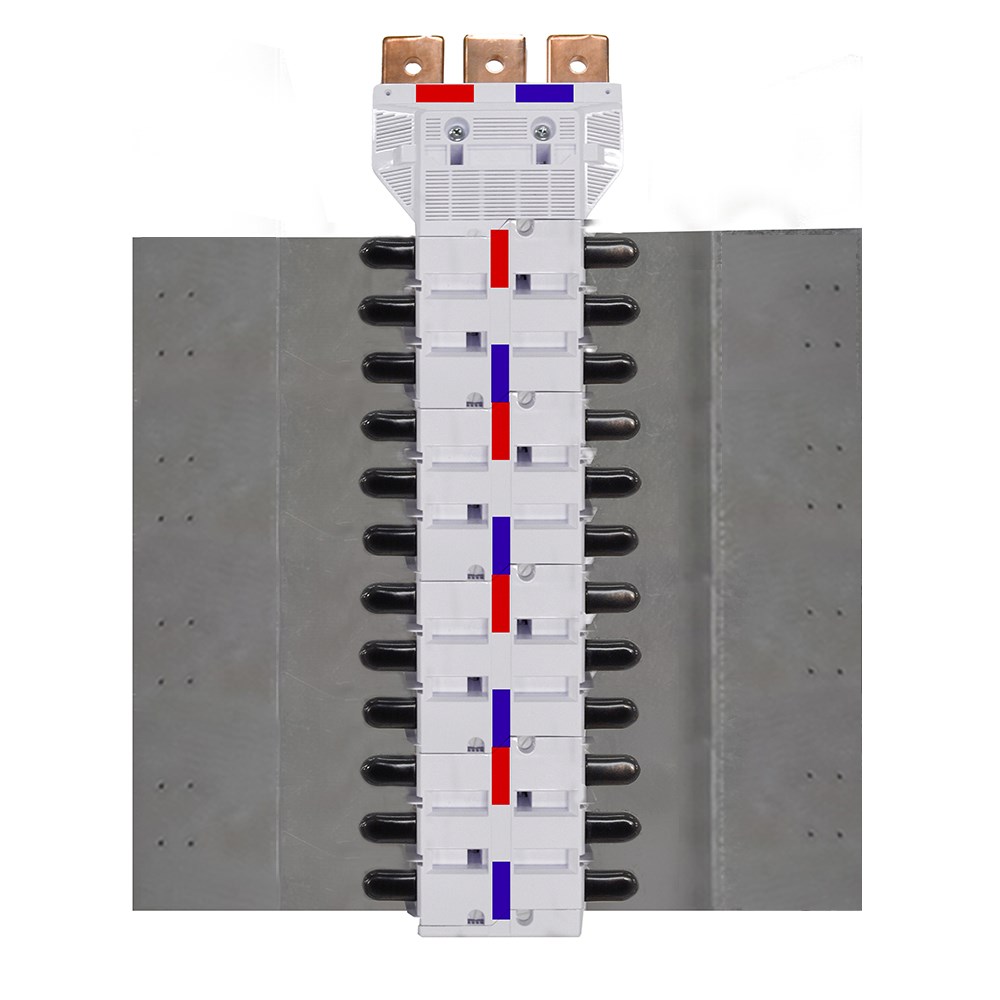

IPD NY63XT1SD24 Nybus MCCB Chassis 24-P 630A Single Feed Double Sided Feed XT1 For: ABB MCCB-XT1

Product Code: NY63XT1SD24

  • Supports up to 24 poles for flexible configurations
  • Rated current capacity of 630 A
  • Withstands short circuit currents up to 36 kA
  • Compatible with ABB MCCB-XT1
  • Complies with AS/NZS 61439.1:2016 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB Chassis
Brand
IPD
Application
Use with ABB MCCB-XT1

Electrical

Busbar Pitch
25 mm
Location of Connection
Double Sided
No. of Phases
3-phase
Rated Short Time Withstand Current (Icw)
36000A
Rated Current (In)
630A
Nominal Voltage
~690V AC (based on MCCB rating)
No. of Poles
24P

Environmental

IP Rating
IP2X

Safety, Standards & Compliance

Standards and Approvals
AS/NZS 61439.1:2016

Documents

IPD Product Catalogue V17
