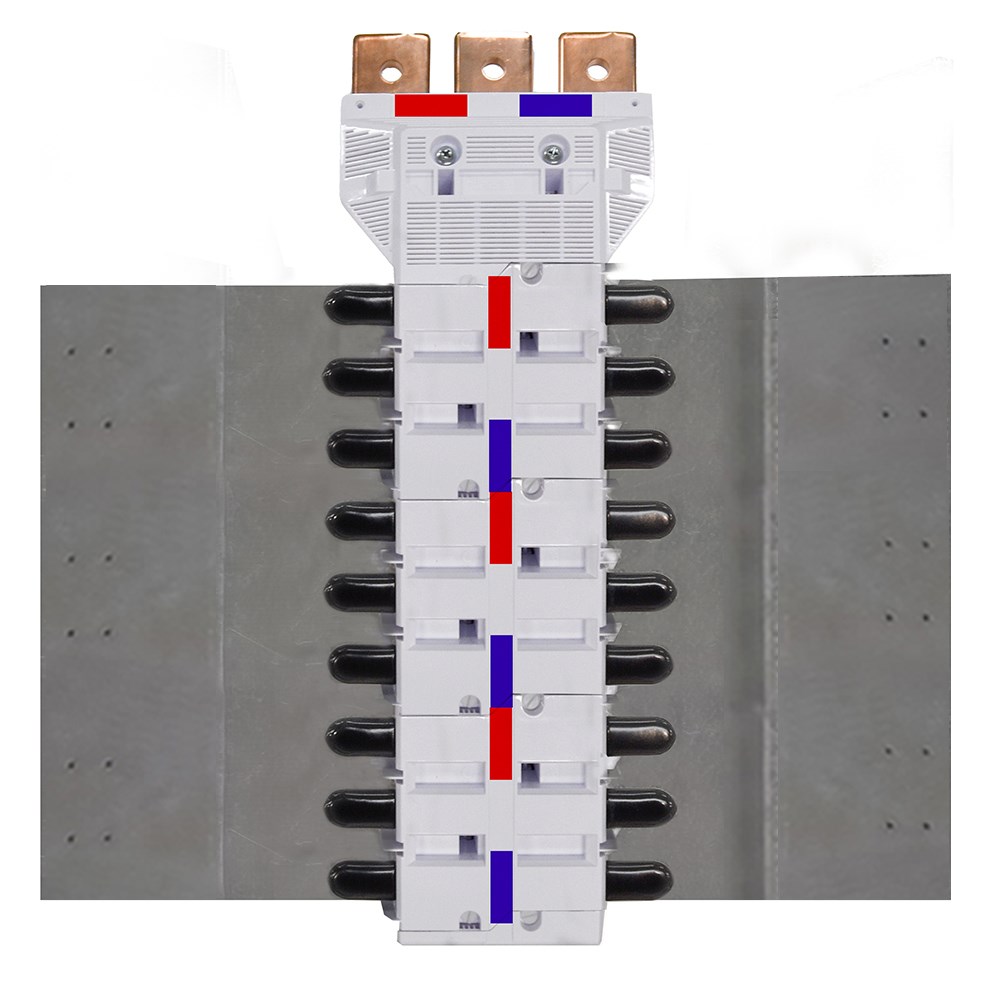

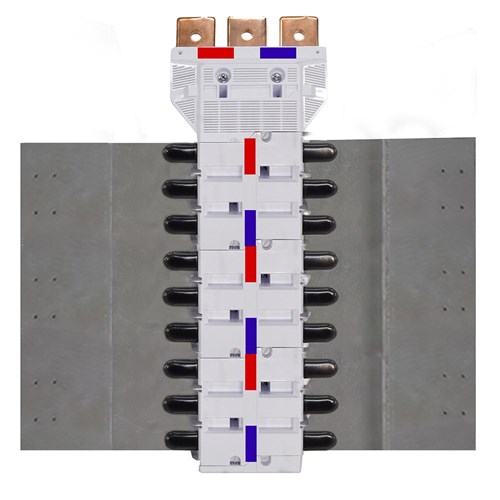

IPD NY63XT1SD18 Nybus MCCB Chassis 18-P 630A Single Feed Double Sided Feed XT1 For: ABB MCCB-XT1

Product Code: NY63XT1SD18

  • Rated for 630 A current capacity
  • Withstands 36 kA short circuit
  • Accommodates 18 poles
  • Single feed, double-sided design
  • Complies with AS/NZS 61439.1:2016
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB Chassis
Brand
IPD
Application
Use with ABB MCCB-XT1

Electrical

Busbar Pitch
25 mm
Location of Connection
Double Sided
No. of Phases
3-phase
Rated Short Time Withstand Current (Icw)
36000A
Rated Current (In)
630A
Nominal Voltage
~690V AC (based on MCCB rating)
No. of Poles
18P

Environmental

IP Rating
IP2X

Safety, Standards & Compliance

Standards and Approvals
AS/NZS 61439.1:2016

Documents

IPD Product Catalogue V17
